Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 485
Confidential

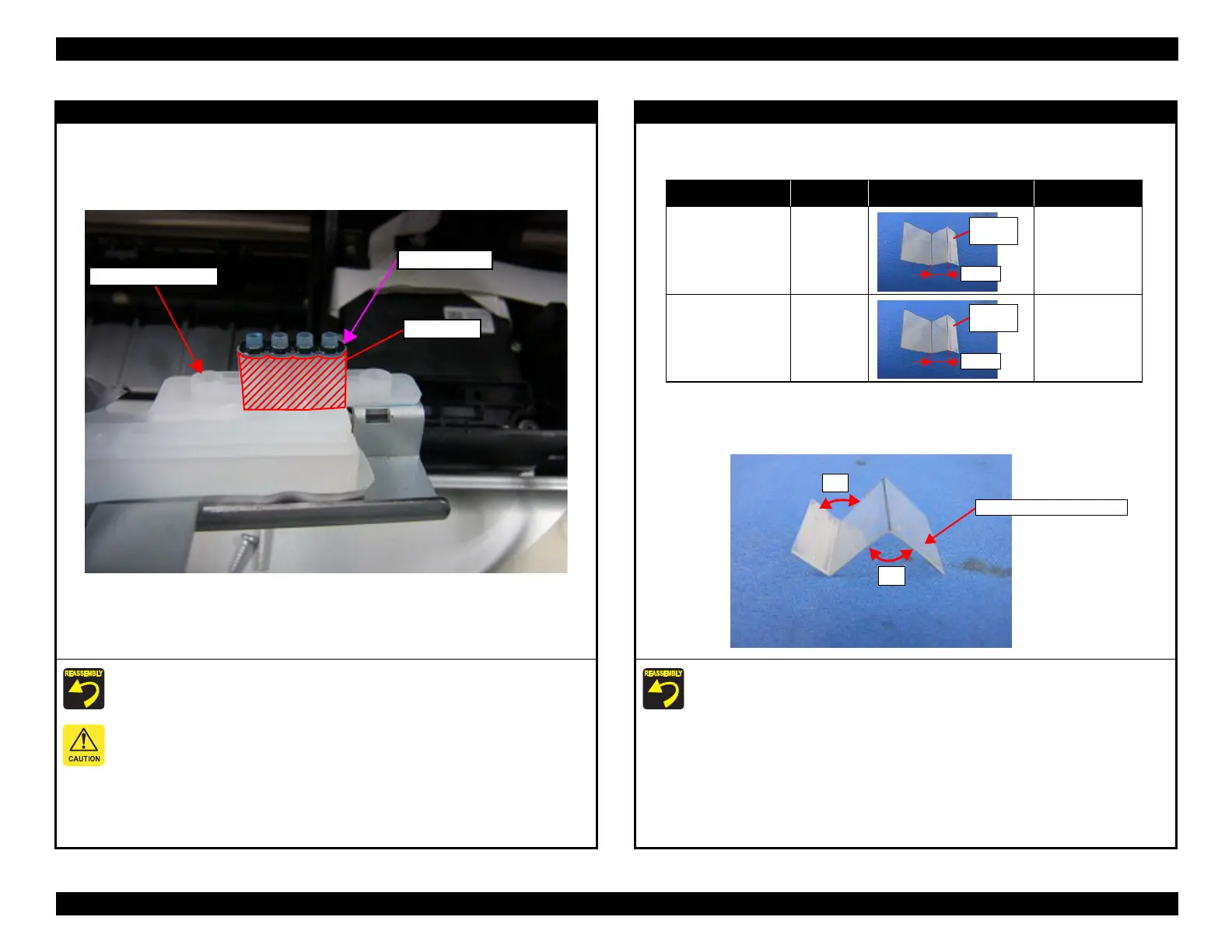

Printhead
Make sure to clean the Ink tube joint part of Ink Supply Unit by using the Cleaning
stick, because perform the Ink Leak Check correctly.
 If ink is remained to ink tube joint part of Ink Supply Unit, Ink Leak Check can not perform
correctly. Therefore cleaning the ink surely.
 Replace the seal joint head with the new one because it cannot be reused.
 Check the seal joint head is not double-installed.
 Check the seal joint head is inserted all the way.
 Check the foreign object does not adhere on the seal joint head.
Ink Tube Connector
Seal Joint Head
Wiping area
Printhead
In this product, Ink Leak Check is necessary to prevent the ink leakage due to
assembly mistake.
Therefore, make sure to install the ink leak measurement jig when installing the Ink
Tube to Printhead.
Before using the Leak Check Jig, push the ink leak measurement jig along the folds
until the fold angle become 90 degrees.
 Types of Ink Leak Measurement Jig
Part Name Part Code Photo Remark
LEAK TESTER
SHEET FRONT
1684353
LEAK TESTER
SHEET REAR
1684354
Smoked
Face
10mm
Smoked
Face
15mm
90°
Ink Leak Measurement Jig
90°

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
