Disassembly/assembly Disassembly/Reassembly Procedures 489
Confidential

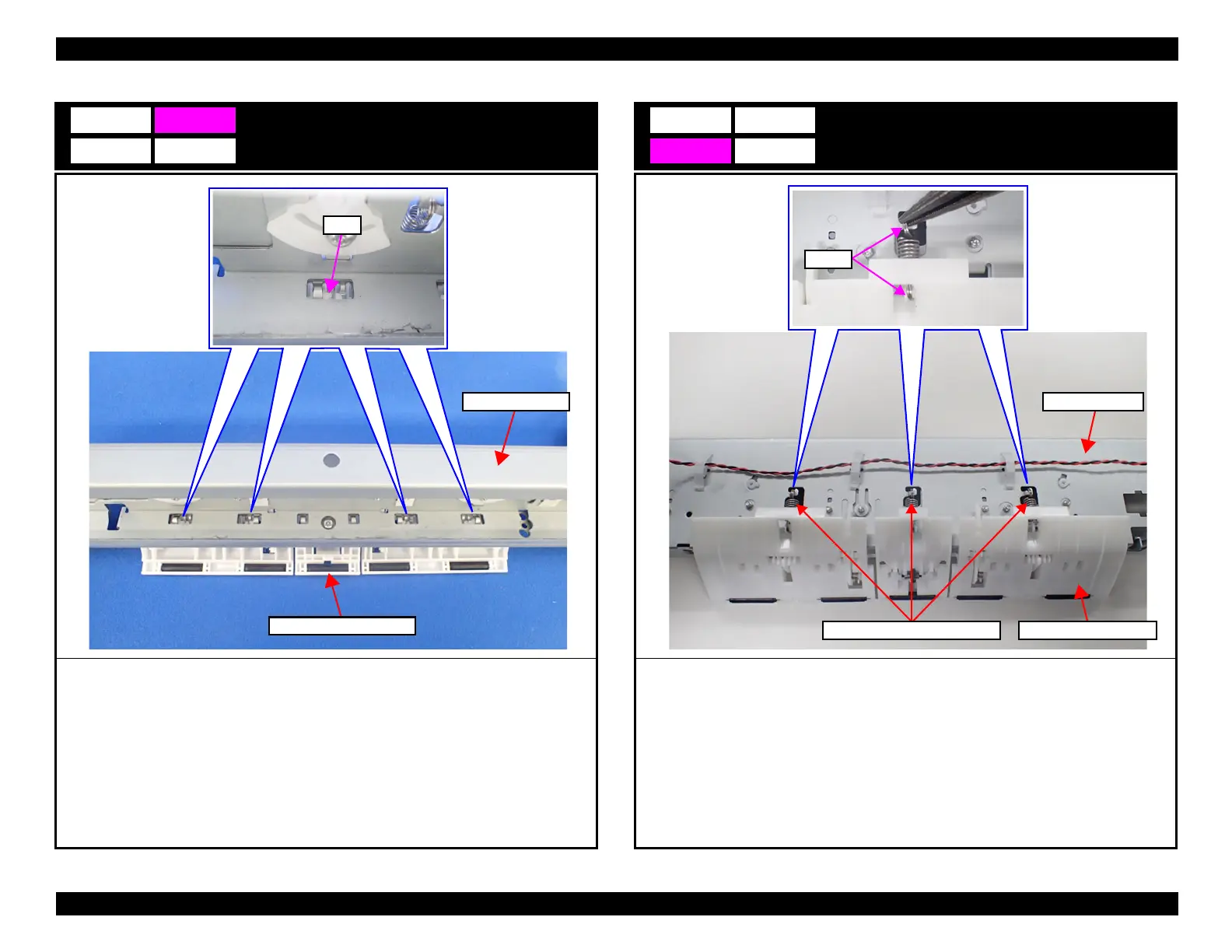

Paper Guide Upper Assy
1. Disengage four hooks of the Paper Guide Upper Assy, and remove the Paper Guide Upper
Assy from the Main Frame Assy.
B22
Main Frame Assy
Hook
Paper Guide Upper Assy
Paper Guide Upper Assy Spring
1. Remove the three Paper Guide Upper Assy Spring from each two hooks on the Main Frame
Assy using a Longnose pliers.
C22
Hooks
Paper Guide Upper AssyPaper Guide Upper Assy Spring
Main Frame Assy
