EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 488
Confidential
Main Frame Assy

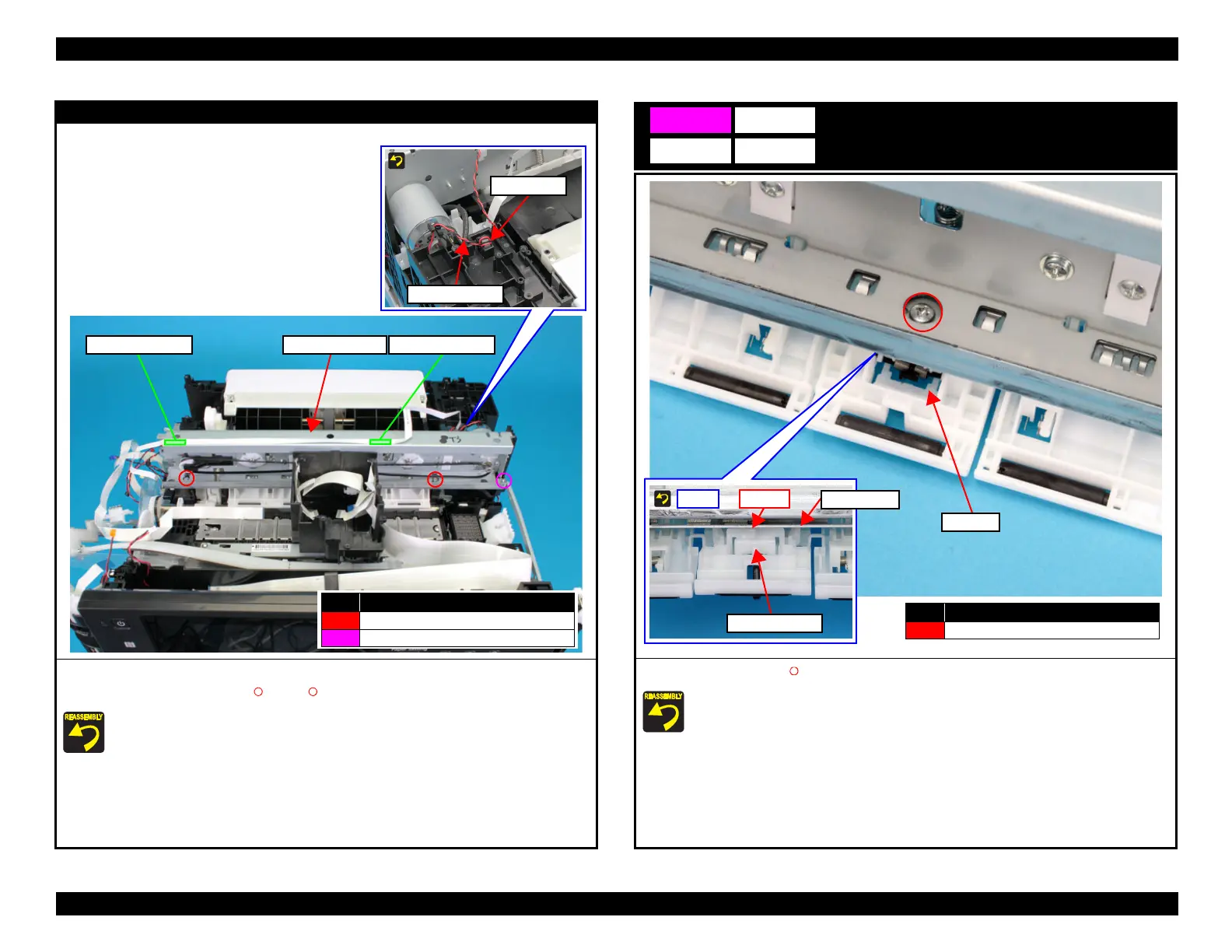

4. Peel off the CSIC FFC from the frame.
5. Remove the three screws (S14: x2, S5: x1), then remove the Main Frame Assy.
 Fix CSIC FFC on the frame at the location shown in the figure above by using double-sided
tape at two locations.
 Route the CR Motor Cable with reference to the figure above.
No. Screw Type
S14
C.B.P-TITE-SCREW-3X16-FZN3C
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
CR motor cable
Ferrite core
Main Frame Assy
Double-sided tapeDouble-sided tape
PE Assy
1. Remove the screw (S5: ), and remove the PE Assy from the Main Frame.
Confirm there are no gaps between the Sensor Holder and the Main Frame.
A22
PE Assy
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Sensor Holder
Front
No gap
Main Frame
