Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 487
Confidential

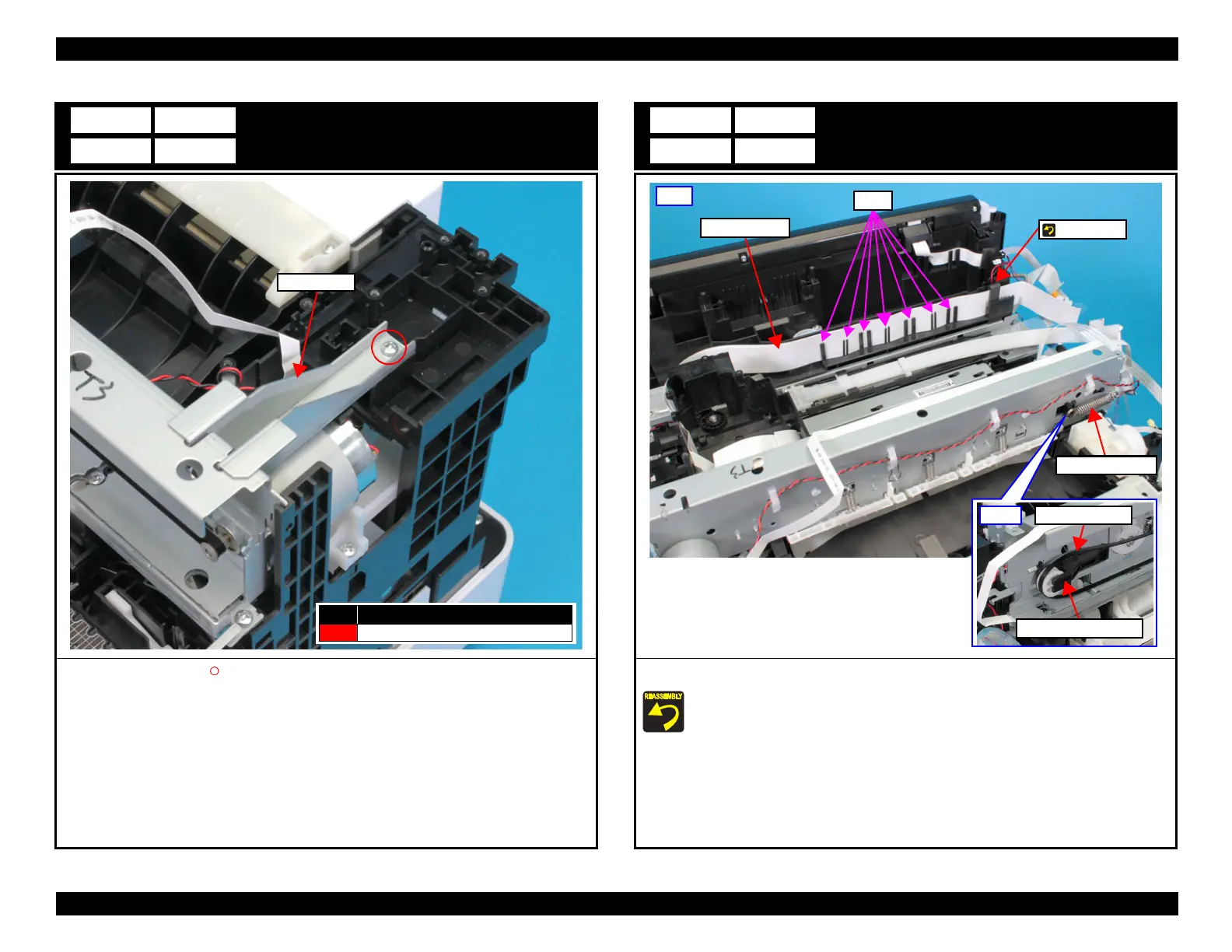

Frame Plate
1. Remove the screw (S4: ), and remove the Frame Plate.
A20 B20
C20 D20
Frame Plate
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Main Frame Assy
1. Release the Head FFC Assy from the seven tabs on the Frame Base.
Set the Ferrite Core of the Head FFC Assy in the point shown above.
2. Slide the CR Driven Pulley Assy in the direction of the arrow to remove the CR Timing
Belt from the CR Driven Pulley Assy.
3. Remove the Extension Spring.
A21 B21
C21 D21
Head FFC Assy
Ferrite core
Extension Spring
CR Driven Pulley Assy
CR Timing Belt
Front
Rear
Tabs

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
