Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Operating principles 52
Confidential
 Intermediate feeding mechanism
This mechanism feeds the paper fed from the Cassette Assy to the paper feed
mechanism.
The intermediate feeding mechanism is driven by the ASF Motor.
The Middle Roller always rotates in a set direction (paper feed direction)
because of the Planet Gear, regardless of the ASF motor rotational direction.

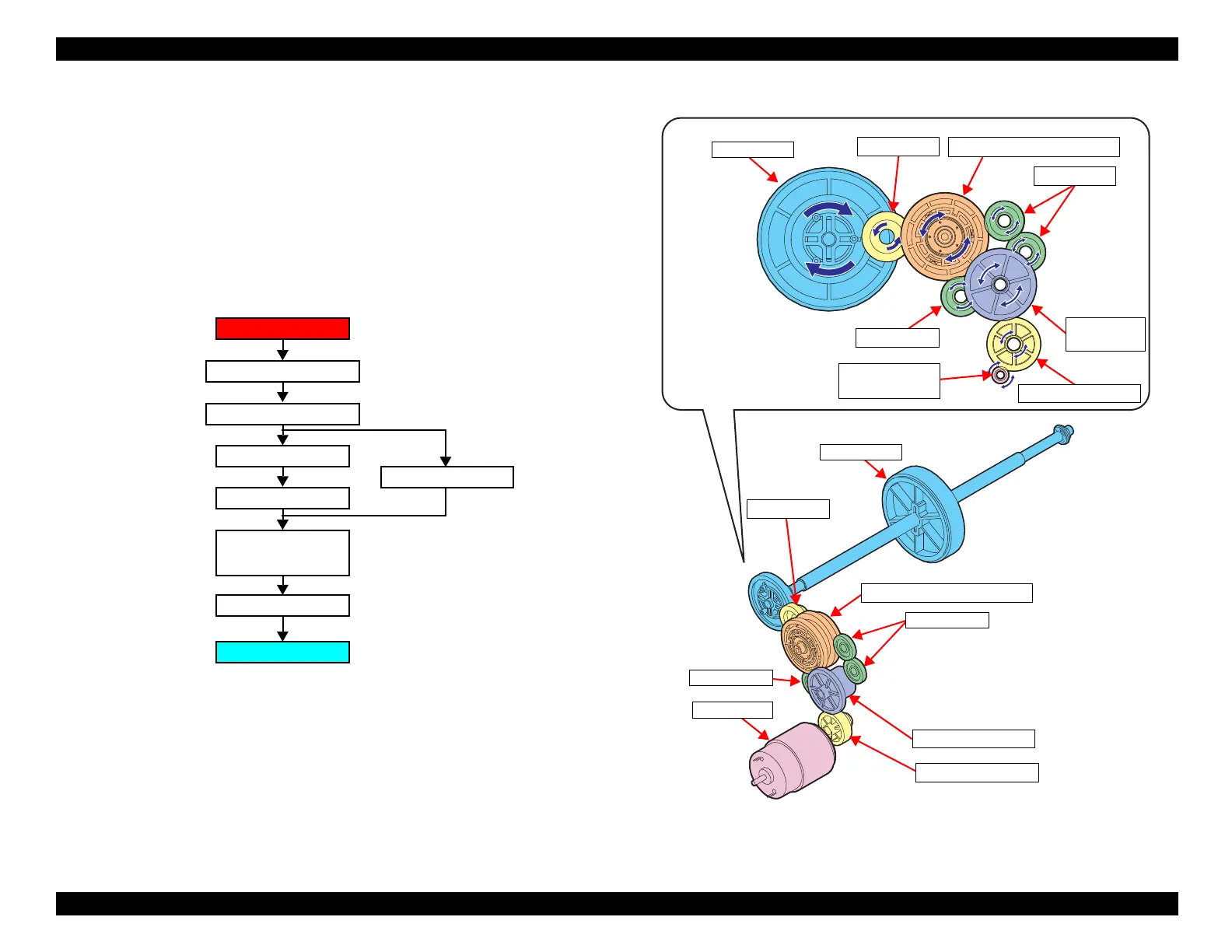

Figure 3-31. Drive path
Duplex Gear
Middle Roller
Planet Gear
ASF Motor
Compound Gear A
Planet Gear
Planet Gear
Compound Gear
35.5, 26.4
Compound Gear C
Middle Roller
Duplex Gear
ASF Motor
Pinion Gear of
ASF Motor
Planet Gear
Planet Gear
Compound Gear 35.5, 26.4
Compound Gear C
Compound Gear A
Compound Gear A
Compound
Gear C
Planet Gear
Planet Gear
Middle Roller
Duplex Gear
Compound Gear 35.5, 26.4

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
