Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Operating principles 53
Confidential
Rear Feeding Mechanism
 Overview
This mechanism feeds the paper set on the Hopper to the intermediate feeding
mechanism. The retard separation method is used for paper separation.
The rear feeding mechanism is driven by the ASF Motor.
Since the ASF Motor drives the pick-up mechanism and intermediate feeding
mechanism, the ASF Clutch Gear and Rear ASF Solenoid Assy turn the drive
force ON/OFF so that the LD Roller rotates during the rear feed only.

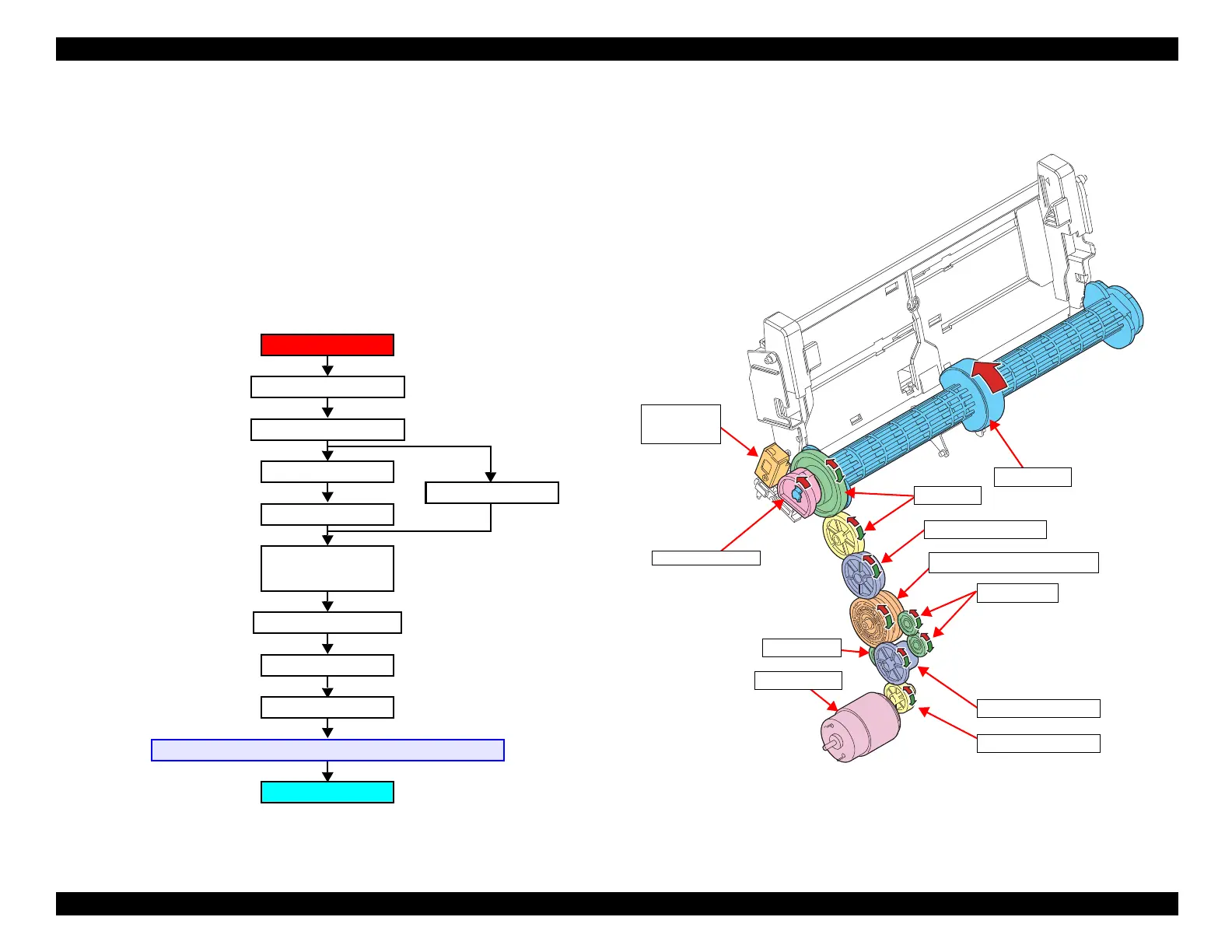

Figure 3-32. Drive path
Planet Gear
ASF Motor
Compound Gear A
Planet Gear
Compound Gear D
Planet Gear
Compound Gear
35.5, 26.4
LD Roller
Spur Gear
Spur Gear
Rear ASF Solenoid/ASF Clutch Gear operation
Compound Gear C
ASF Clutch Gear
Spur Gear
Rear ASF
Solenoid
LD Roller
Compound Gear 35.5, 26.4
Compound Gear A
Planet Gear
ASF Motor
Planet Gear
Compound Gear C
Compound Gear D

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
