Main Board Assy

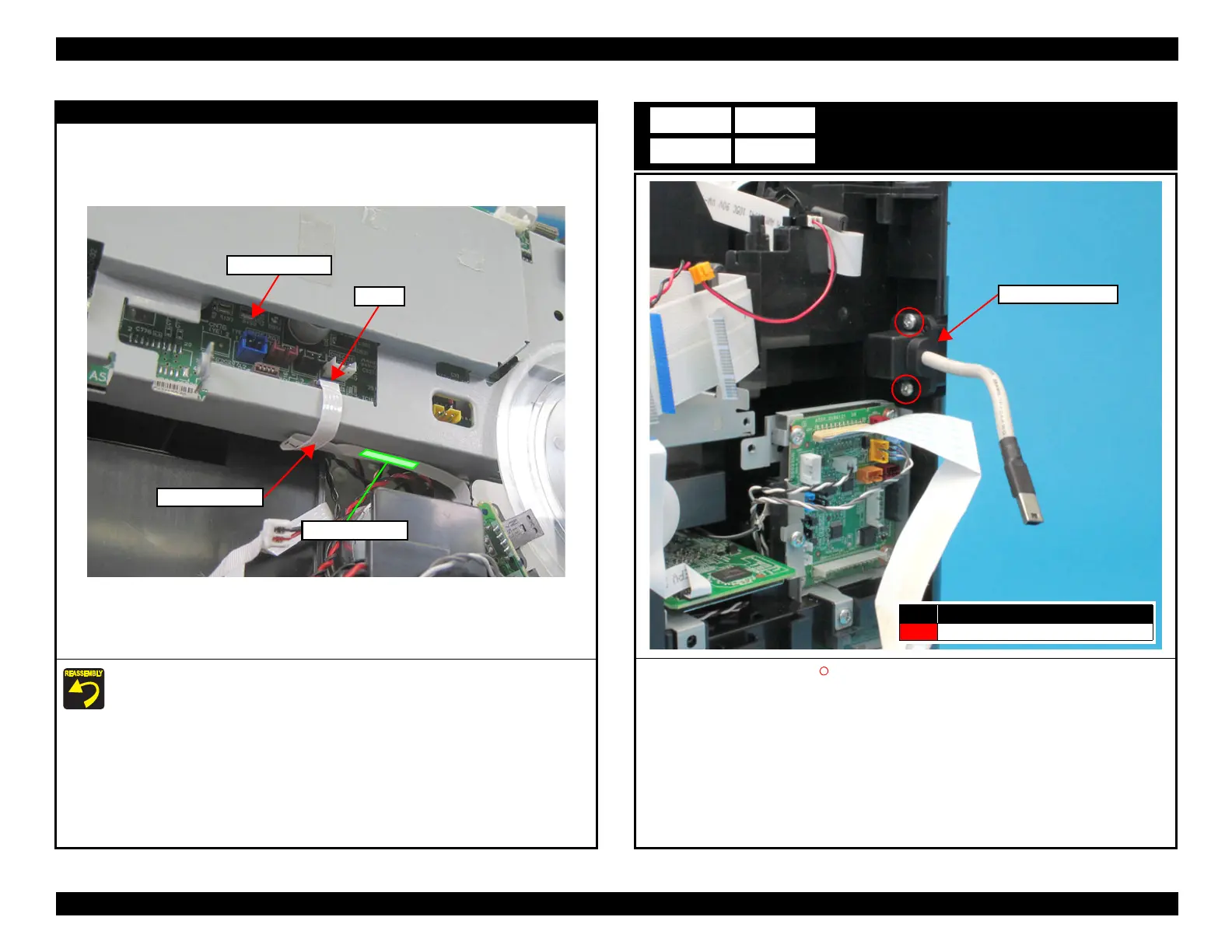

Secure the PF Encoder FFC with double-sided tape as shown above.
PF Encoder FFC
Main Board Assy
CN52
Double-sided tape
USB Interface Board
1. Remove the two screws (S4: ), then remove the USB Interface Board.
A33
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
USB Interface Board
