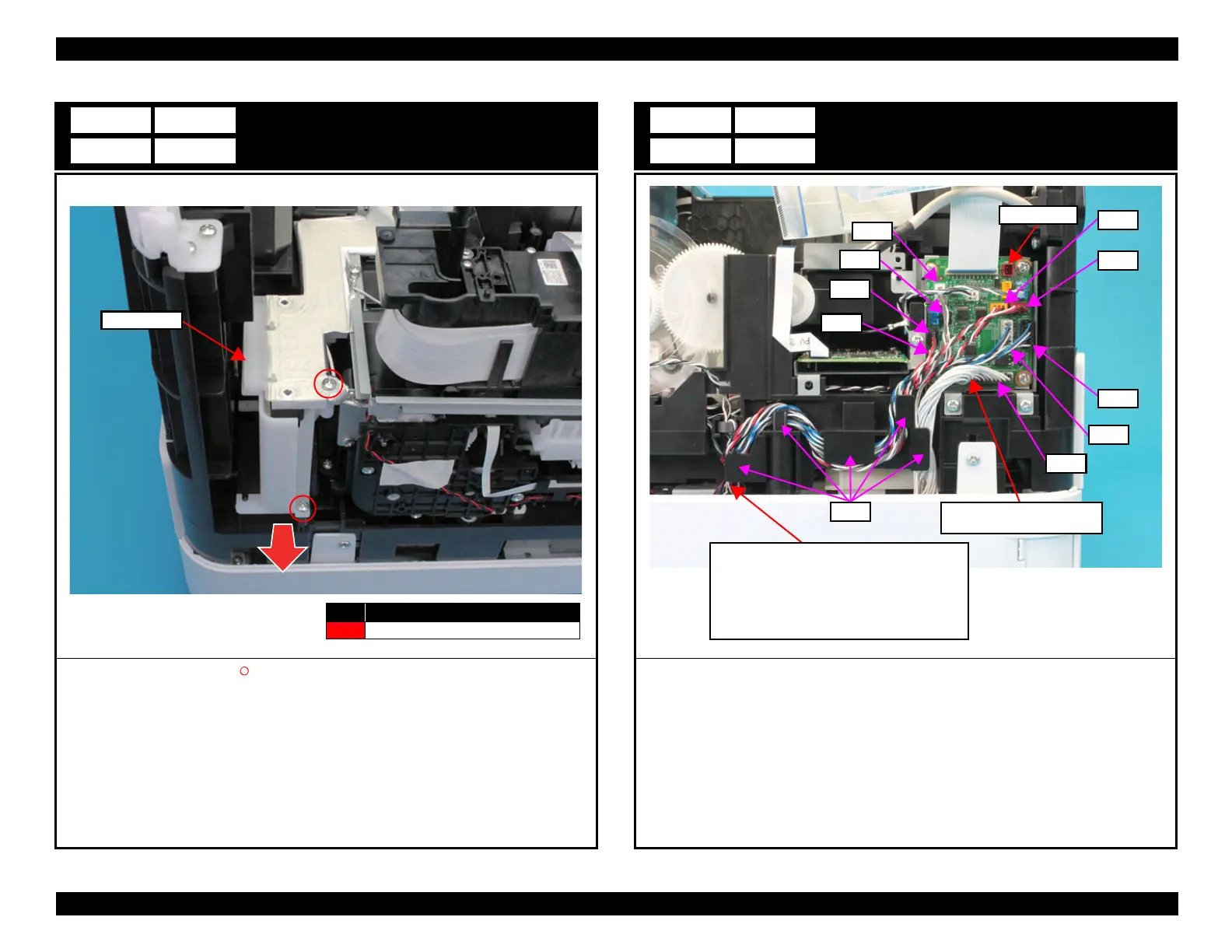

Guide Cover
1. Remove the two screws (S4: ), and remove the Guide Cover in the direction of the arrow.
A34
Guide Cover
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
RIPS Unit
1. Disconnect the cables from the connectors (CN2, CN10, CN11, CN12, CN22, CN30,
CN31, CN54, CN55) on the Relay Board.
2. Release the cables from the five tabs on the Frame Base.
A35
CN30
CN31
CN54
CN55
CN2
CN10
CN11
CN12
CN22
Relay Board
Tabs
Drawer Connector (CN2)
Cover Open Sensor (CN22)
Ink End Sensor (C/M) (CN30)
Ink End Sensor (Bk/Y) (CN31)
Ink Leak Sensor 1 (CN11)
Ink Leak Sensor 2 (CN12)
Ink Leak Sensor 3 (CN54)
Ink Leak Sensor 4 (CN55)
Temperature and Humidity Sensor(CN10)
