Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 538
Confidential

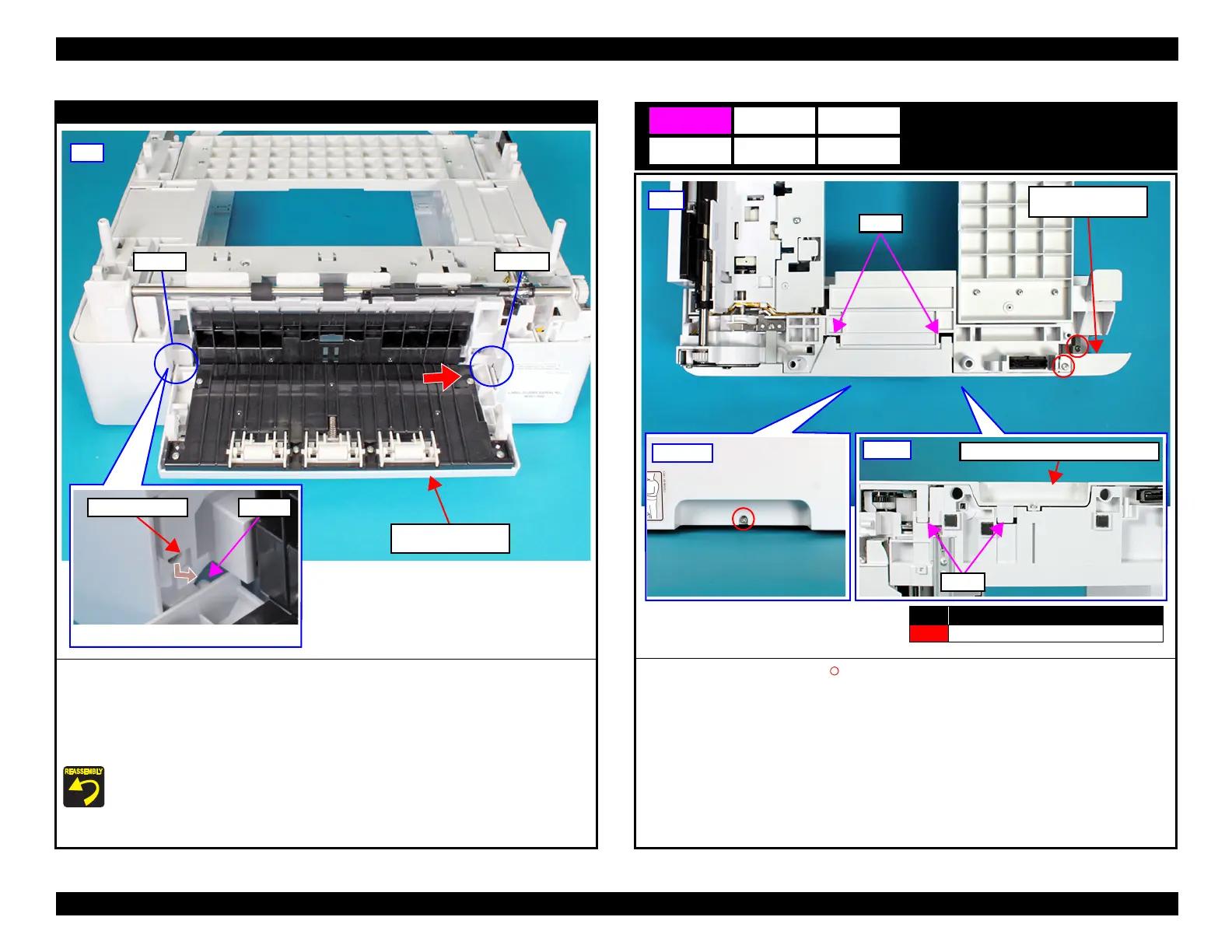

Optional Paper Cassette Rear Cover
2. Push the Optional Paper Cassette Rear Cover in the direction of the arrow, and remove
dowel A of the Optional Paper Cassette Rear Cover from the hole in the frame.
3. Remove dowel A of the Rear Lower Cover along the groove of the frame.
4. Remove dowel B of the Rear Lower Cover from the hole in the frame, and then remove the
Optional Paper Cassette Rear Cover.
When attaching the Rear Lower Cover, first of all, attach dowel B in the hole of the
frame.
Optional Paper
Cassette Rear Cover
Dowel A Dowel B
Rear
Remove dowel A along the groove.
Groove of frame
Dowel A
Optional Paper Cassette Left Cover
1. Remove the three screws (S4: ).
2. Disengage the hooks (x4) at the top and the bottom.
A5 B5
D5
Optional Paper
Cassette Left Cover
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hooks
Hooks
Bottom
Optional Paper Cassette Left Cover
Light side
Top
