EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 539
Confidential

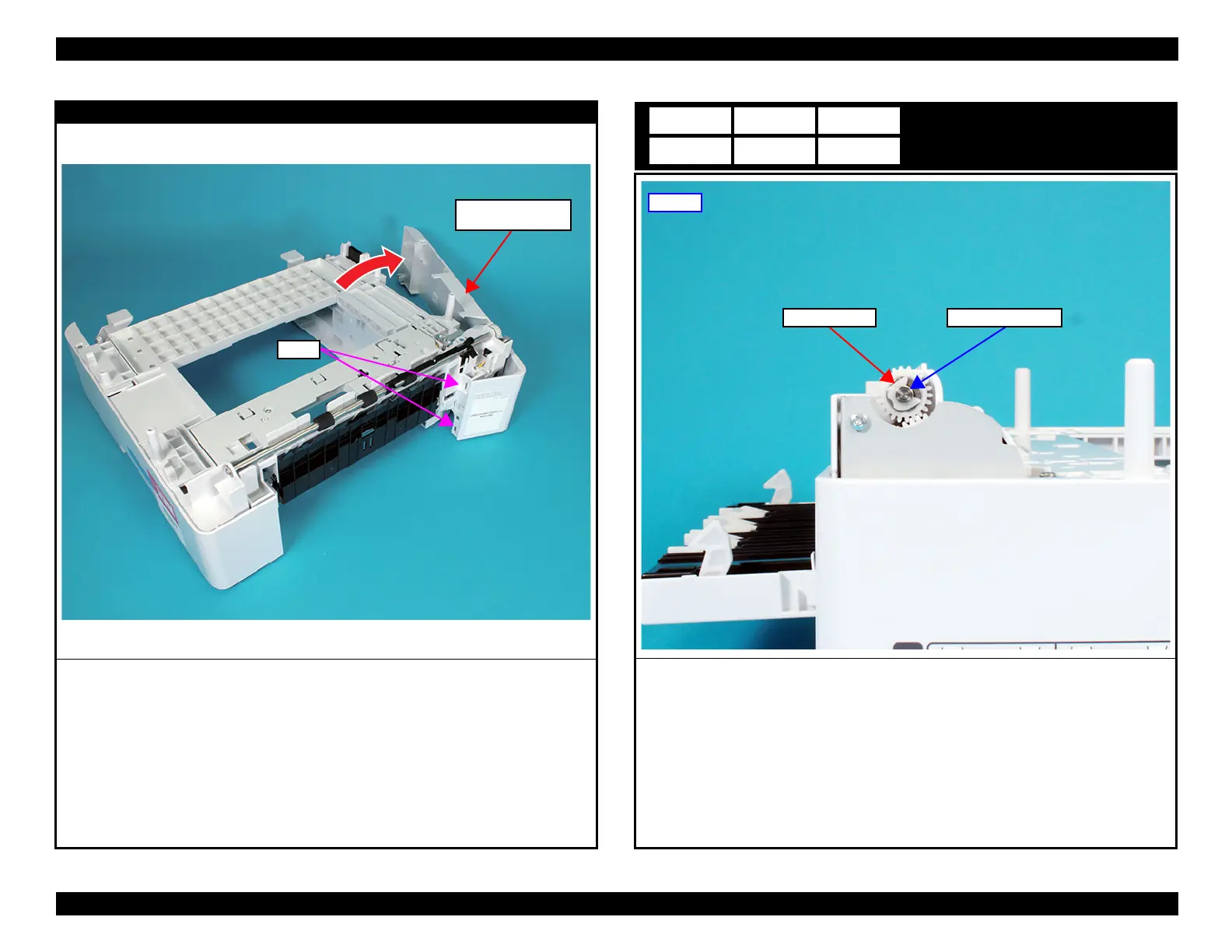

Optional Paper Cassette Left Cover
3. Rotate in the direction of the arrow, remove the hooks (x2) on the rear side, and then
remove the Optional Paper Cassette Left Cover.
Hooks
Optional Paper
Cassette Left Cover
E-ring (plastic)
1. Remove the E-ring (plastic) from the left side of the Vertical Feed Roller.
B6
E-ring (plastic)
Left side
Vertical Feed Roller
