Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 541
Confidential

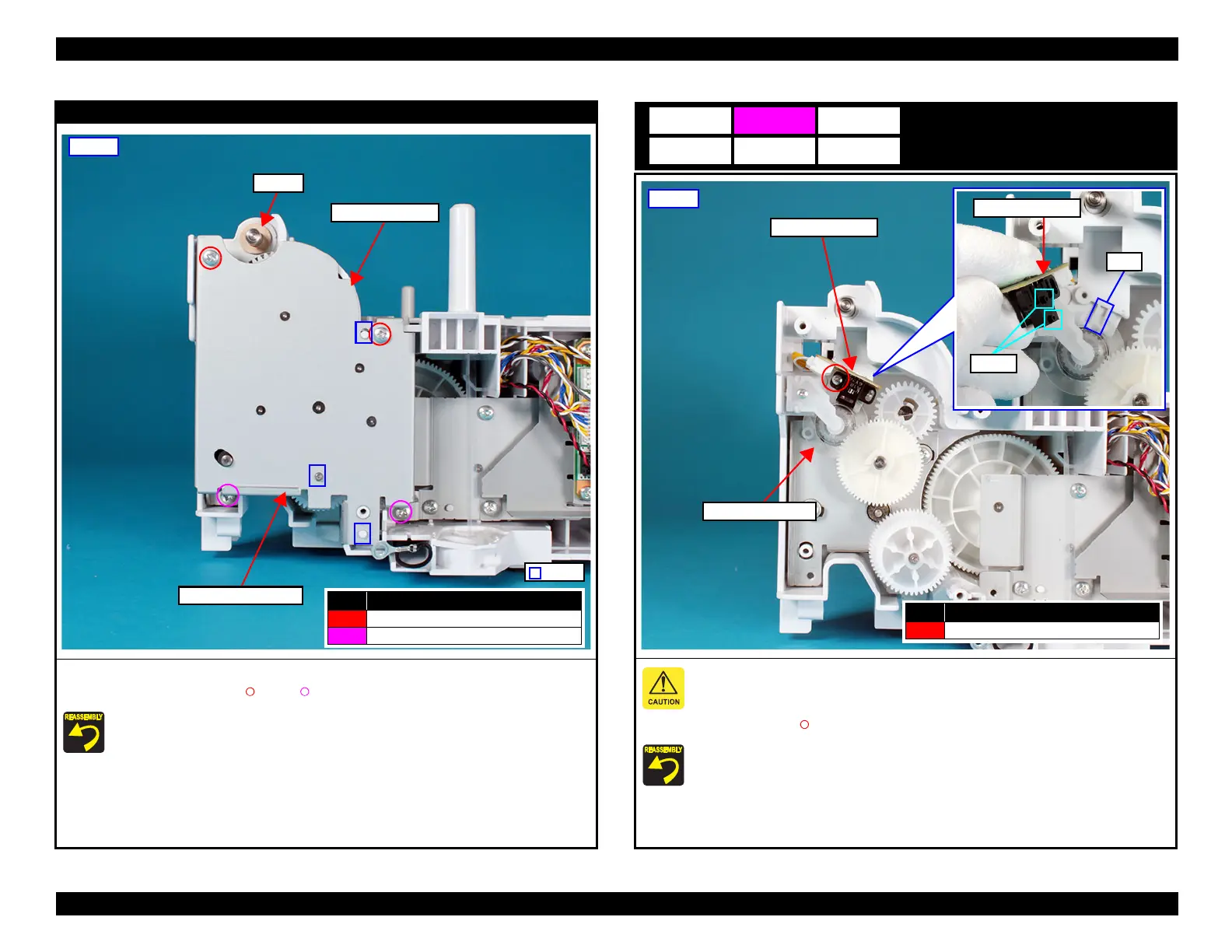

Hopper Drive Assy
3. Release the Bearing A from the Vertical Feed Roller.
4. Remove the four screws (S4: x2, S5: x2), then remove the Hopper Drive Frame.
When attaching the Hopper Drive Assy, align the dowels (x3) with the holes in the
Hopper Drive Frame.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Hopper Drive Assy
Hopper Drive Frame
Dowel
Left side
Bearing
ASF Encoder Assy
Perform work ensuring that the ASF Encoder Scale is not damaged.
1. Remove the screw (S17: ), then remove the ASF Encoder Assy.
 When attaching the ASF Encoder Sensor, be sure to align the dowels of the ASF Encoder
Assy with the holes on the frame.
 After attaching the ASF Encoder Assy, make sure the ASF Encoder Assy is not in contact
with the ASF Encoder Scale.
B9
ASF Encoder Assy
Hole
Dowels
ASF Encoder Assy
No. Screw Type
S17
C.B.P-TITE-SCREW-2X6-F.ZN-3C
ASF Encoder Scale
Left side

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
