Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 543
Confidential

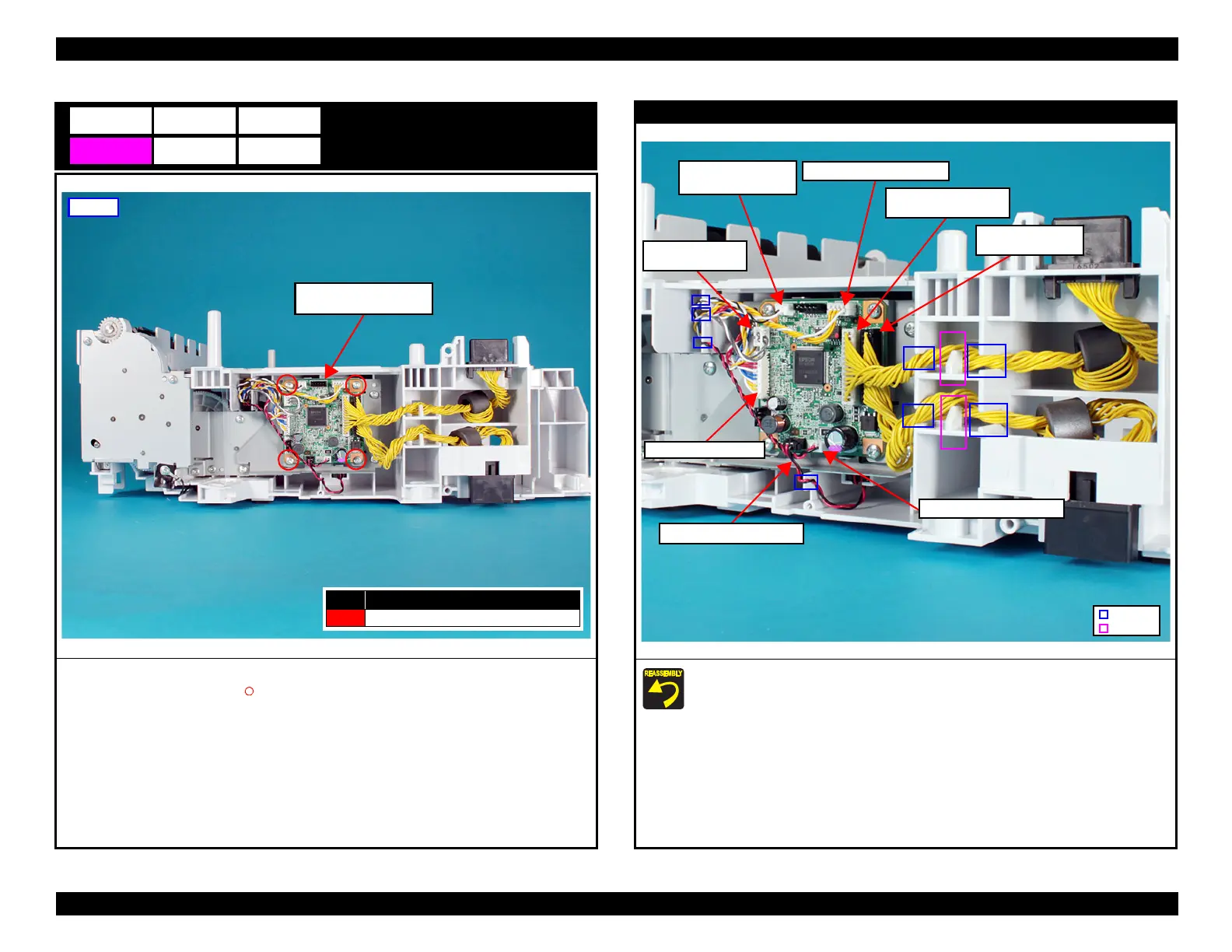

Optional Paper Cassette Main Board Assy
1. Remove all connectors connected to the Optional Paper Cassette Main Board Assy.
2. Remove the four screws (S5: ), and then remove the Optional Paper Cassette Main Board
Assy.
D6
Optional Paper Cassette
Main Board Assy
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Left side
Optional Paper Cassette Main Board Assy
 Route the cables connected to the Optional Paper Cassette Main Board Assy with reference
to the figure above.
 The Feed Sensor, Cassette Detection Sensor, Cassette Detection Sensor, and Hopper Position
Sensor are connected to CN7.
Jam Cover Detection
Sensor Cable (CN5)
ASF Encoder Cable (CN6)
Drawer Connector
(female) Cable (CN1)
ASF Motor Cable (CN13)
Lift Motor Cable (CN12)
Lift Phase Sensor
Cable (CN6)
Sensors Cable (CN7)
Groove
Rib
Drawer Connector
Cable (CN2)
ASF Encoder Cable (CN6)
