Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 544
Confidential

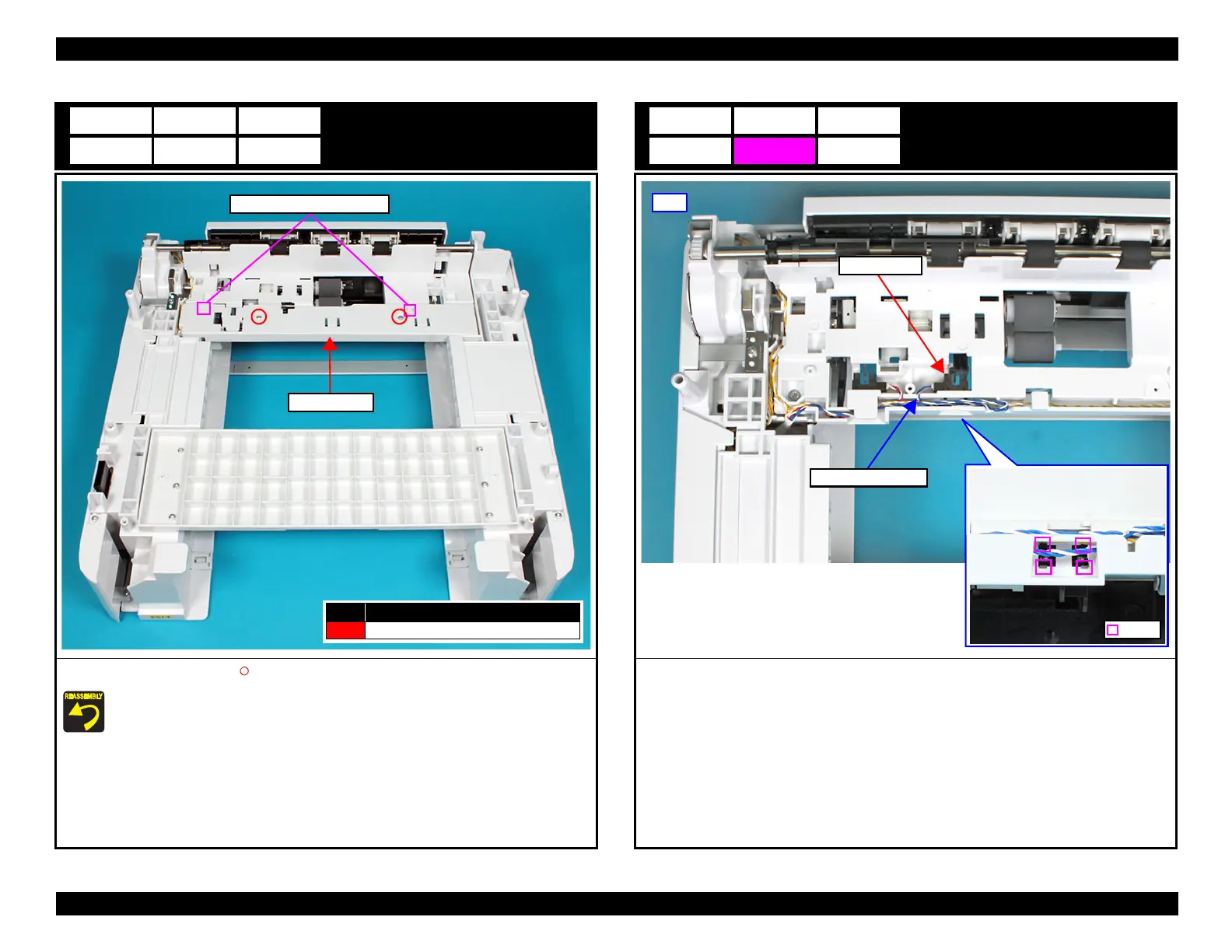

Middle Frame
1. Remove the two screws (S4: ), then remove the Middle Frame.
When installing the Middle Frame, attach the two dowels of the frame to the two
positioning holes of the Middle Frame.
E1
Middle Frame
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Dowels and positioning holes
Photo Sensor
1. Disengage four hooks using precision screw driver or similar tool, then remove the Photo
Sensor from frame.
2. Disconnect the photo sensor cable from the connector, then remove the Photo Sensor.
E2
Hook
Photo Sensor
Photo sensor cable
Top

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
