EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 545
Confidential

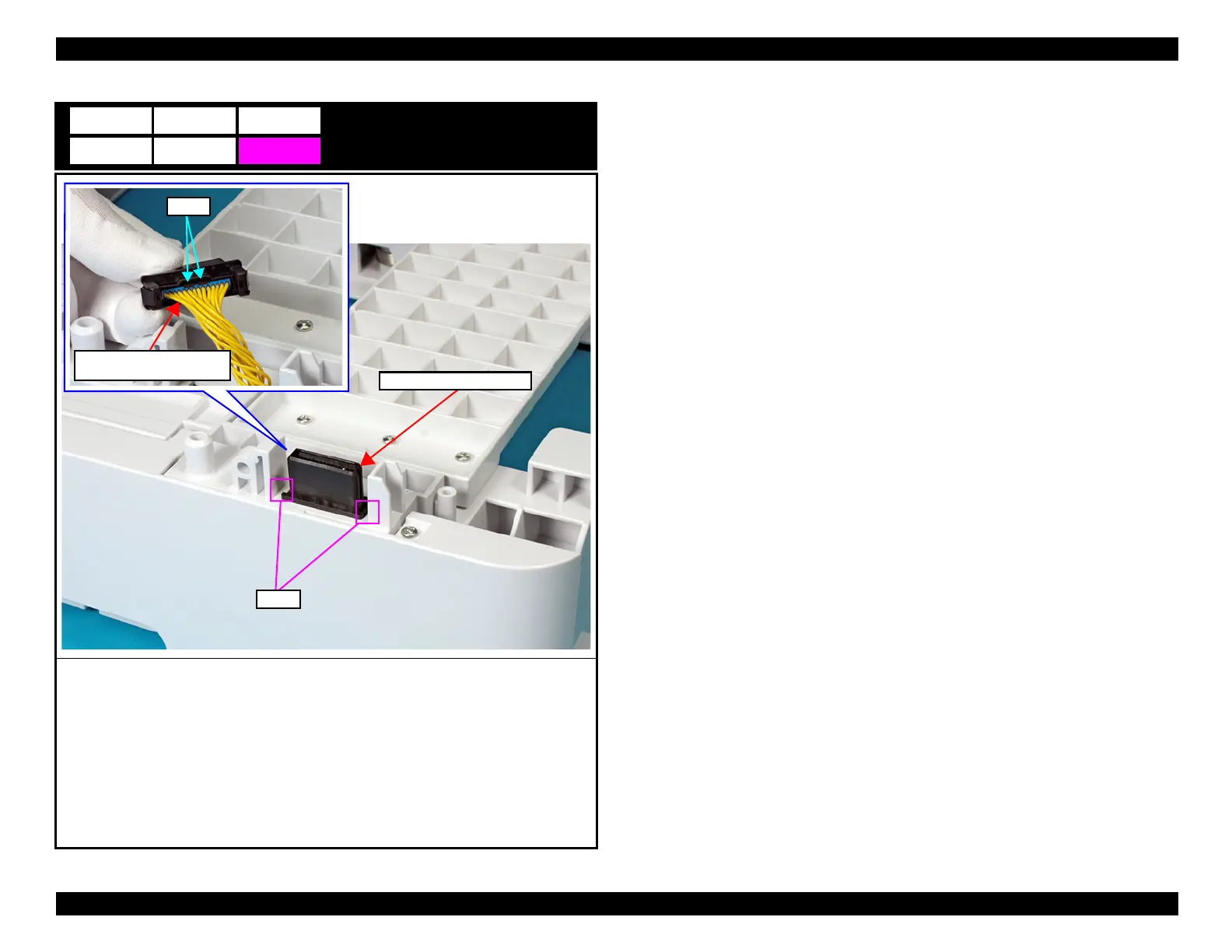

Drawer Connector (female)
1. Disengage the hooks (x2) by using a precision screwdriver, etc., and then remove the
Drawer Connector (female) from the frame.
2. Disengage the hooks (x2) of the Drawer Connector (female), remove the connectors on the
Drawer Connector Harness, and then remove the Drawer Connector (female).
F1
Connector of the Upper
Drawer Connector Harness
Hooks
Drawer Connector (female)
Hooks
