Epson WF-C5210 - Page 548

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 548
Confidential

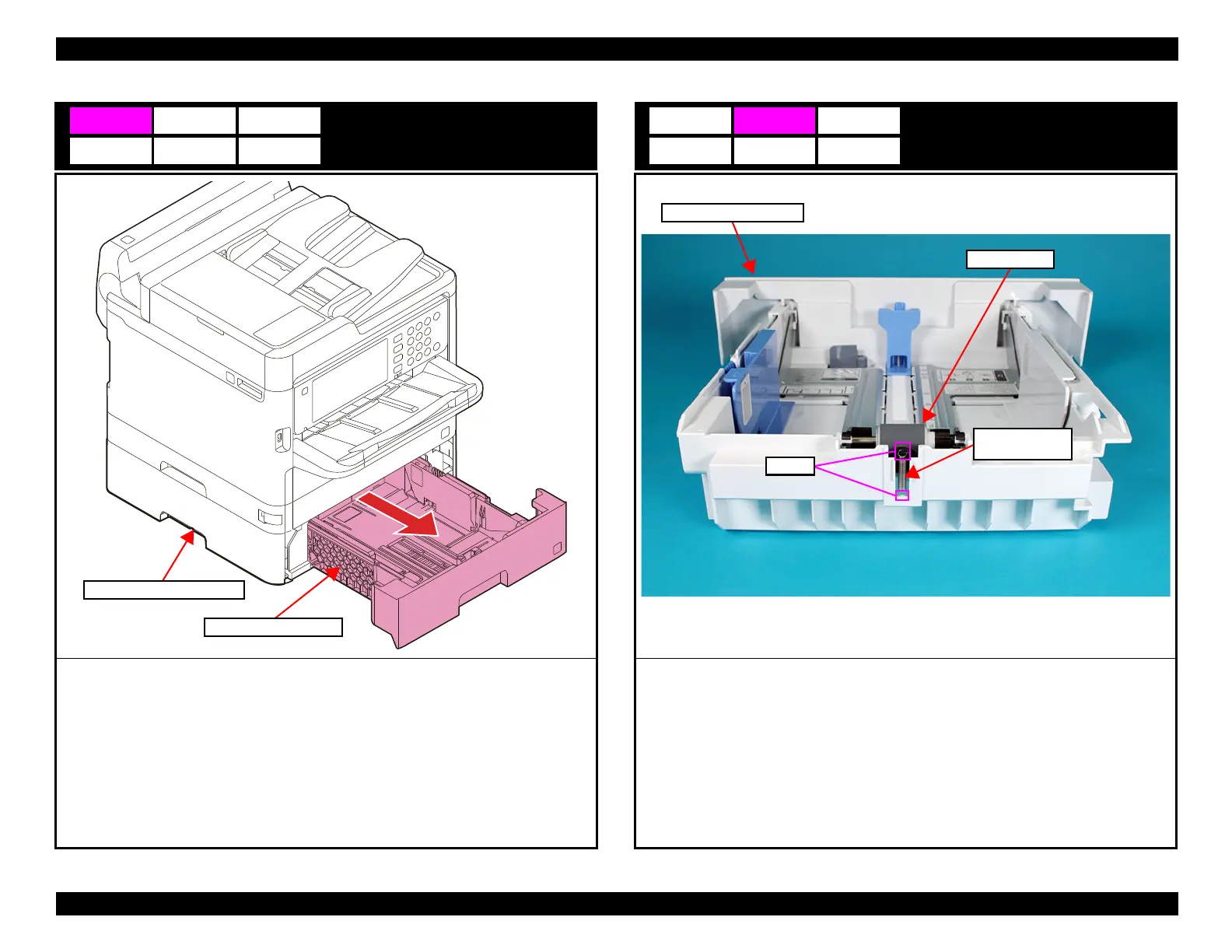

Paper Cassette 2nd Assy
1. Pull the Paper Cassette 2nd Assy, then remove it from the Optional Paper Cassette Unit.
A1 B1
D1 E1
C1
Optional Paper Cassette Unit
Paper Cassette 2nd Assy
Extension Spring (Retard Roller)
1. Disengage two hooks of the Extension Spring, then remove the Retard Roller.
B2 C2
Retard Roller
Extension Spring
(Retard Roller)
Hooks
Paper Cassette 2nd Assy
