Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 549
Confidential

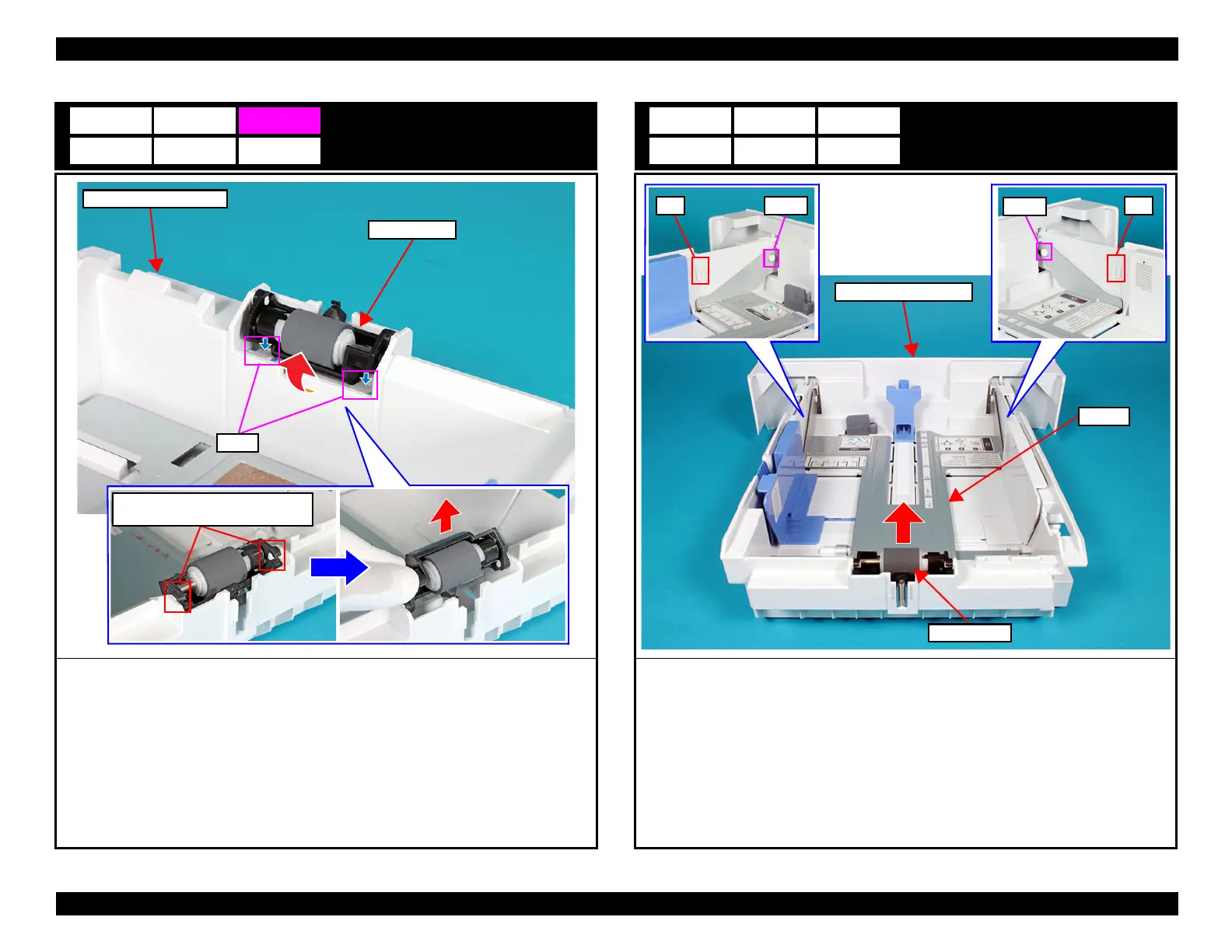

Retard Roller
1. Disengage the hooks (x2) by pressing in the direction of the arrow, and then rotate the
Retard Roller in the direction of the red arrow.
2. Align the shape of the notch of Retard Roller and the shaft of Paper Cassette 2nd Assy, and
then remove the Retard Roller.
C3
Retard Roller
Paper Cassette 2nd Assy
Shaft of the Paper Cassette 2nd Assy
and notch of the Retard Roller
Hooks
Hopper
1. Lift up the Retard Roller side of the Hopper while extending the Paper Cassette 2nd Assy
toward the outside, and then remove the Hopper from the rib of the Paper Cassette 2nd Assy.
2. Release the Hopper from two dowels on the Paper Cassette 2nd Assy, then remove the
Hopper.
D2 E2
Hopper
Paper Cassette 2nd Assy
DowelRib
Rib
Dowel
Retard Roller

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
