Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Operating principles 55
Confidential
Paper Feed Mechanism
This mechanism feeds the paper fed from the intermediate feeding mechanism
and ejects it.
The paper feed mechanism is driven by the PF Motor's drive force. The drive
force of the PF Motor is transmitted by the PF Timing Belt to the PF Roller and
EJ roller to perform paper feeding before/after printing.

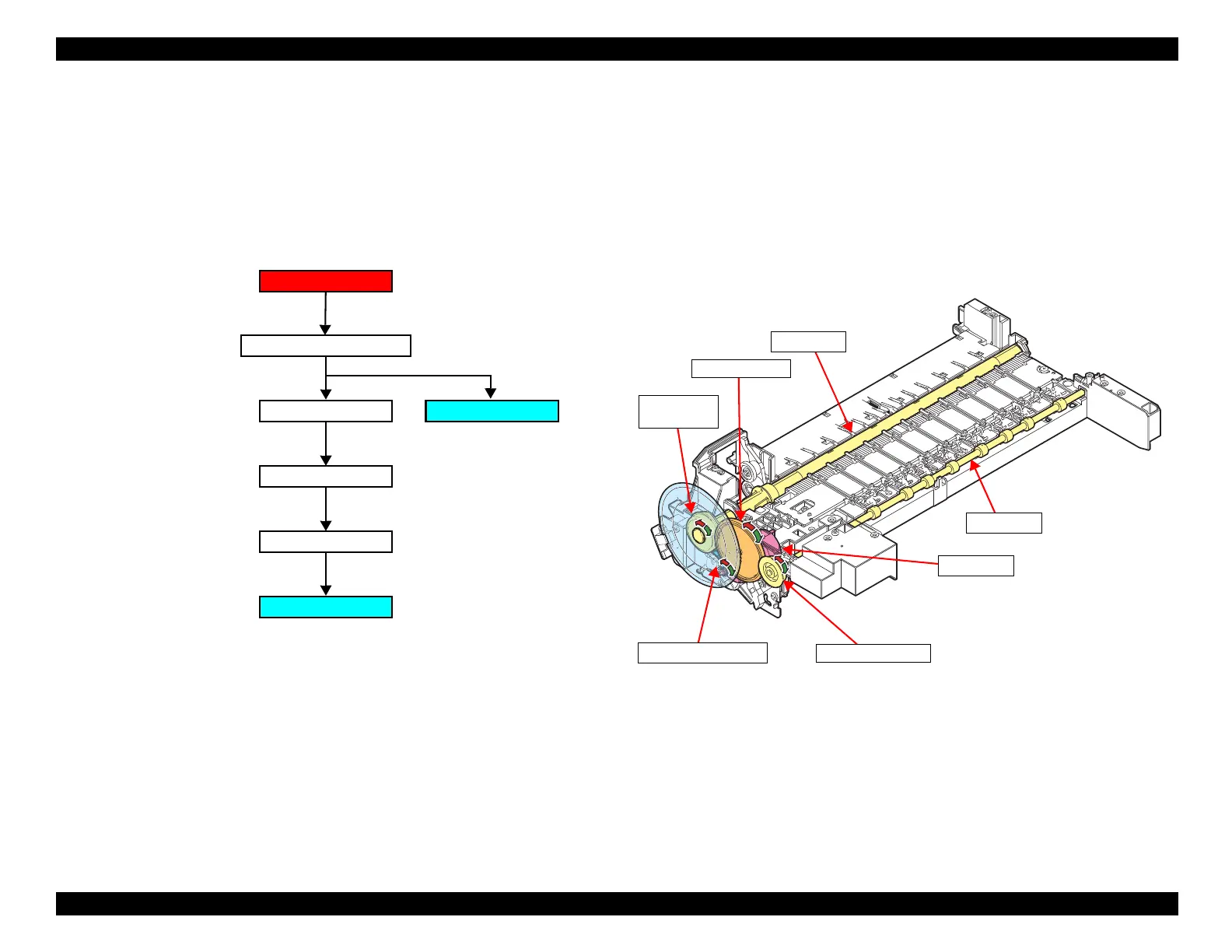

Figure 3-34. Drive path
PF Roller
PF Motor
PF Timing Belt
Spur Gear 28.8
Spur Gear 49.32
Spur Gear 21.1
EJ Roller
EJ Roller
Spur Gear
28.8
PF Timing Belt
Spur Gear 49.32
Spur Gear 21.1
PF Roller
PF Motor

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
