EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Operating principles 56
Confidential
OPTIONAL CASSETTE UNIT
Lift-up mechanism (Optional cassette)
This mechanism lifts the paper loaded on the Paper Cassette 2 up to the paper
pickup position. This mechanism is driven by the drive force of the Lift Motor.
The Lift Motor's drive force is transmitted via the Lift-up Gear Group to this
mechanism and rotates the Lift-up shaft.

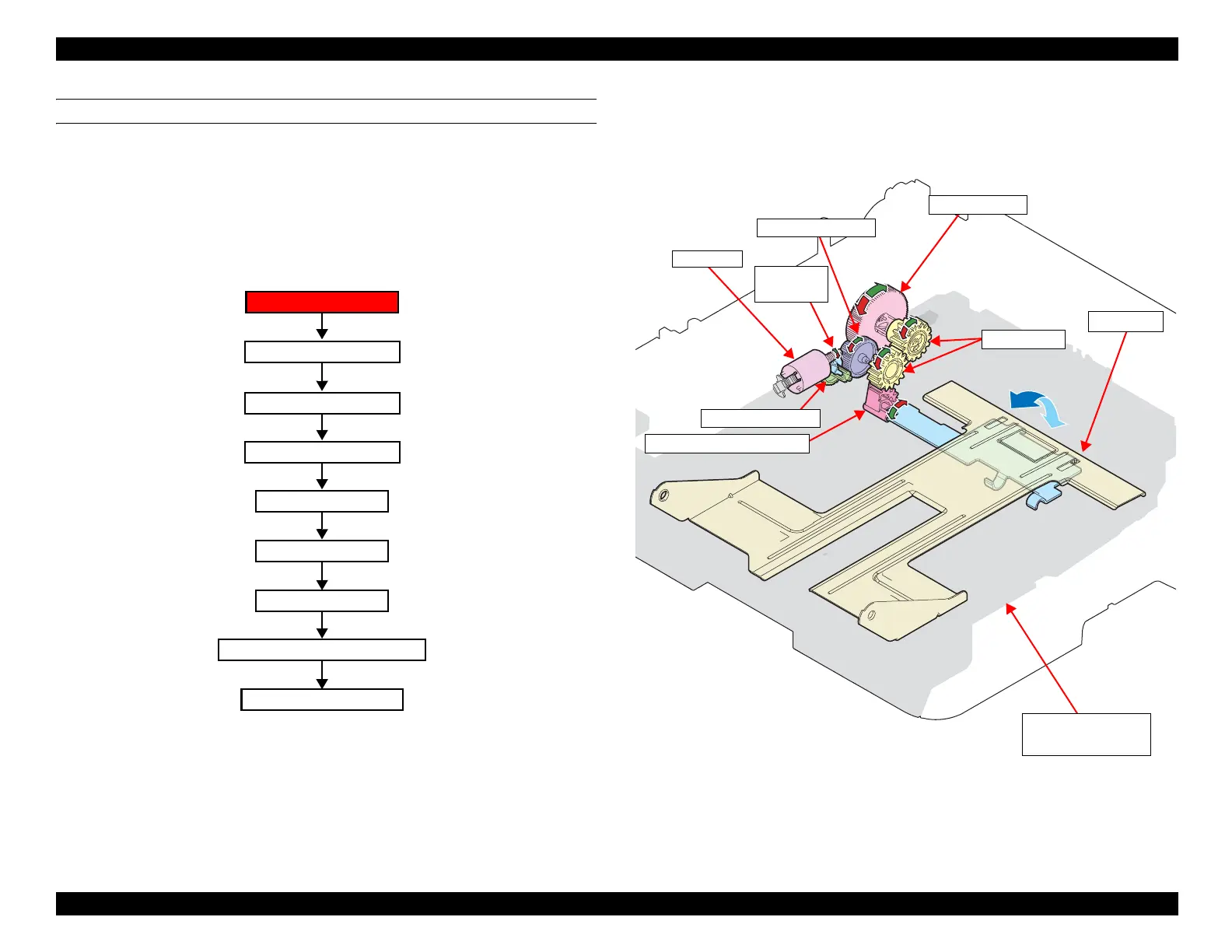

Figure 3-35. Drive path
Lift Motor
Compound Gear A
Spur Gear 55.2
Spur Gear 30
Spur Gear 30
Lift Up Sector Gear 40T
Lift-up mechanism
Compound Gear B
Compound Gear C
Compound
Gear A
Lift Motor
Lift Up Sector Gear 40T
Hopper
Optional Cassette
(Paper Cassette 2)
Compound Gear B
Spur Gear 55.2
Spur Gear 30
Compound Gear C
