Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Adjustment Adjustment and Inspection Details 581
Confidential
NOZZLE DETECT MOVE CHECK
 Adjustment procedure
1. Start the Adjustment Program, and select “Nozzle Detect Move Check”.
2. Press the Perform button to execute “Nozzle Detect Move Check”.

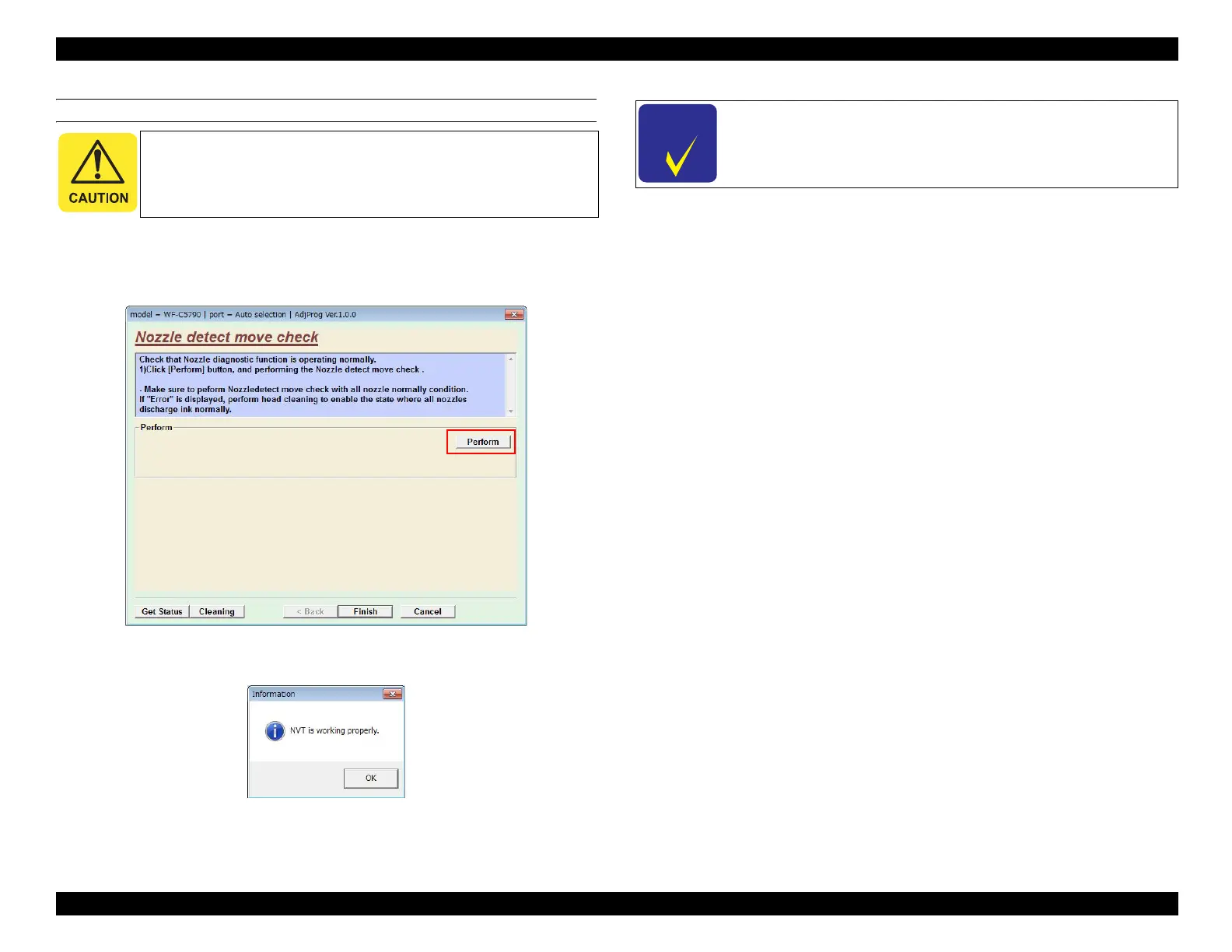

Figure 7-36. Nozzle Detect Move Check screen
3. The nozzle detection operation confirmation results are displayed.
Figure 7-37. Check result screen
This adjustment must be performed when all nozzles are in the
normal discharge state. Therefore before adjustment, make sure all
nozzles are discharging properly.
C H E C K
P O I N T
If the nozzle detection operation confirmation results are NG, a
nozzle that is not discharging properly may be present. Perform
head cleaning, make sure all nozzle are discharging properly, and
then perform the nozzle detection operation confirmation again.

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
