Maintenance/inspection Cleaning 584
Confidential
4. Rotate the gear of the Inksystem Assy in the direction of the arrow to move
the wiper to wiping position.

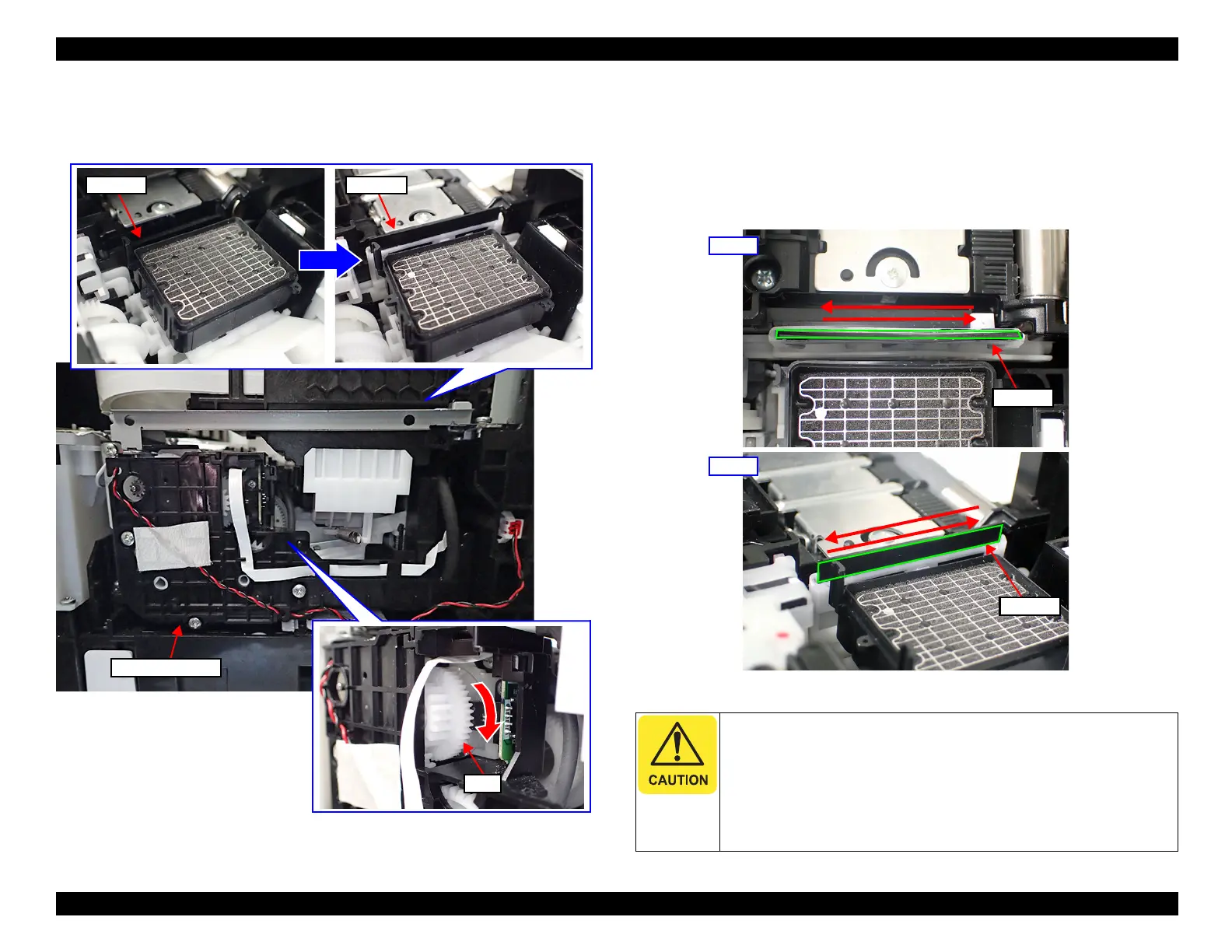

Figure 8-2. Preparation of Cleaning the Wiper
5. Clean the wiper and the cap part using the Polyester swab moistened with
pure water.
 Cleaning the wiper
Clean the top end and right side of the Wiper by moving the Polyester swab
in the direction of the arrows as shown in the figure below.
Figure 8-3. Cleaning the Wiper
Wiper
Wiper
Gear
Inksystem Assy
 If the Polyester swab is moved in a direction other than
that indicated by the arrows in the figure above, the
Wiper may shift. Therefore, always be sure to move it in
the direction of the arrows.
 Be very careful when cleaning the Wiper as it is made of
rubber and may be easily damaged.
Right
Wiper
Top
Wiper
