Cleaning the Cap part

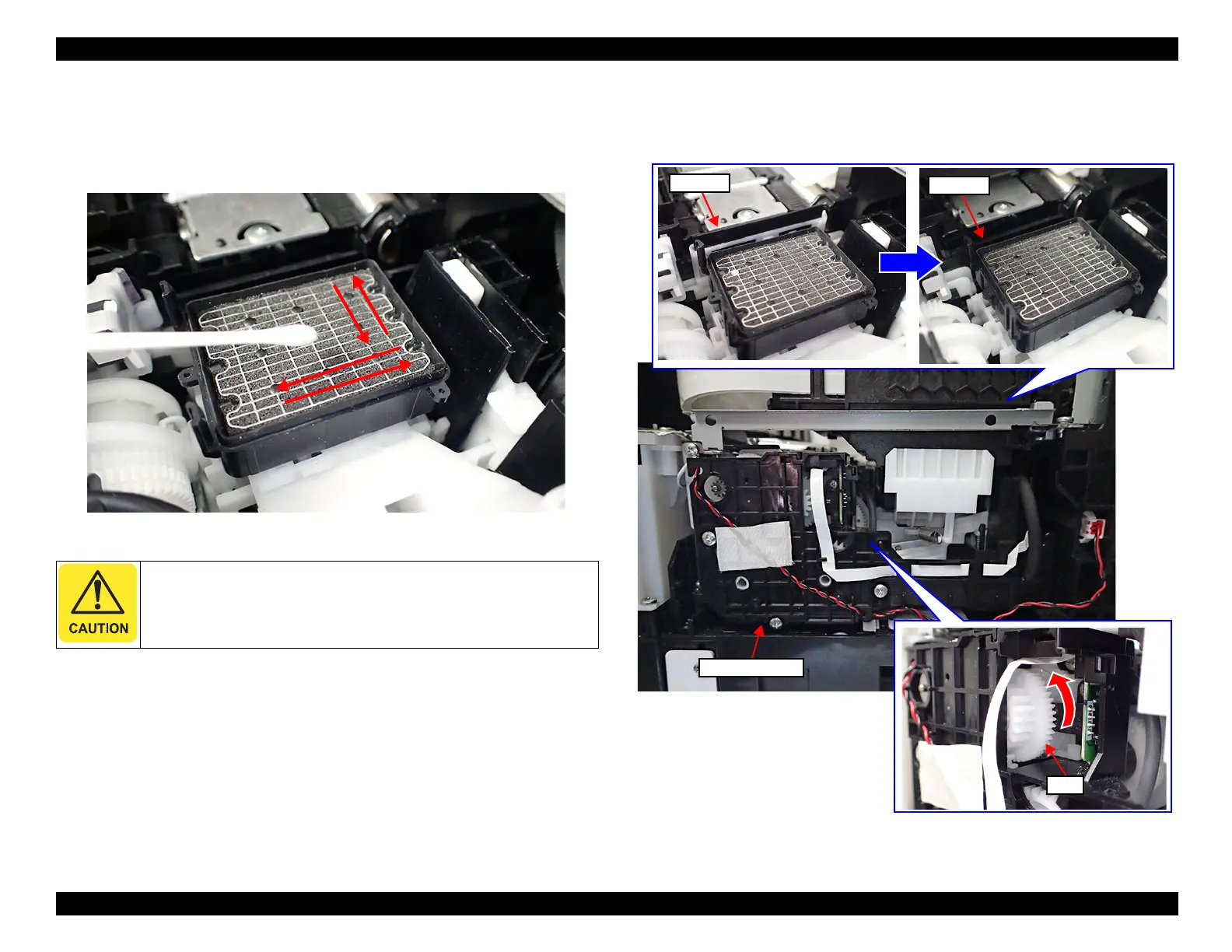

Clean the Cap surface by moving the Polyester swab in the direction of the
arrows as shown in the figure below.
Figure 8-4. Cleaning the Cap part
6. After cleaning the wiper and cap part is completed, rotate the gear of the
Inksystem Assy in the direction of the arrow to retract the wiper.
Figure 8-5. Retracting the Wiper
Do not forcibly press the Polyester swab as the Cap surface
may be easily damaged.
