System 5 Digital Audio Mixing System Operation Manual Channels and Strips
111
8.3 Channel Process Order and Patch Points
The seven process functions can be placed in any order to suit different applications.
The default order is Delay, Metering, Insert, EQ, Filters, Dynamics, and Fader. The
nine patch points are A Input, B Input, Insert Send/Return, Pre-fader Output, Post-fader
Direct Output, Dynamics Key Input, and Dynamics Side-Chain Link In/Out (see Figure
8-10). All patching can be done from PatchNet (see Chapter 4: eMix Application).
The A, B, and Key channel inputs can be assigned from the Strip.
.

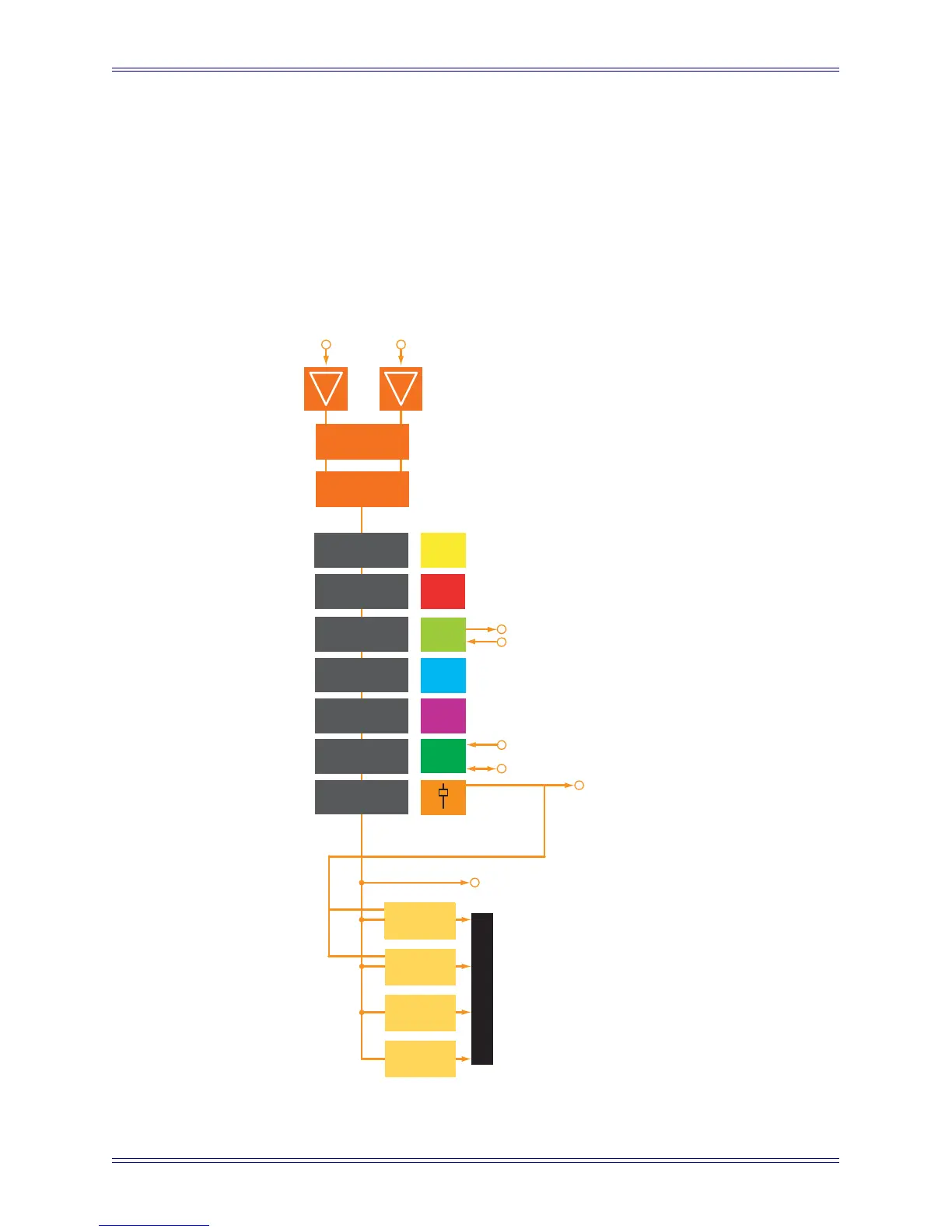

Figure 8-10 Channel processor order and patch points
Function
4 of 7
Function
5 of 7
Function
6 of 7
Function
7 of 7
EQ
Filters
Pre-Fade
r
Output
Solo
PFL/AFL
Aux
Sends
Grp
Pan/Route
Mix
Pan/Route
metsyS sesuB
Post-Fader
Direct Output
Fader
& Mute
Any
Order
Insert
Function
3 of 7
Function
2 of 7
Delay
DYN
Key
Link
Trim & Phase
Input Select
Channel Inputs
A B
Function
2 of 8
Function
1 of 7
Meter
