System 5 Digital Audio Mixing System Operation Manual CM402T Center Section
83
6.1 Channel Select Panel

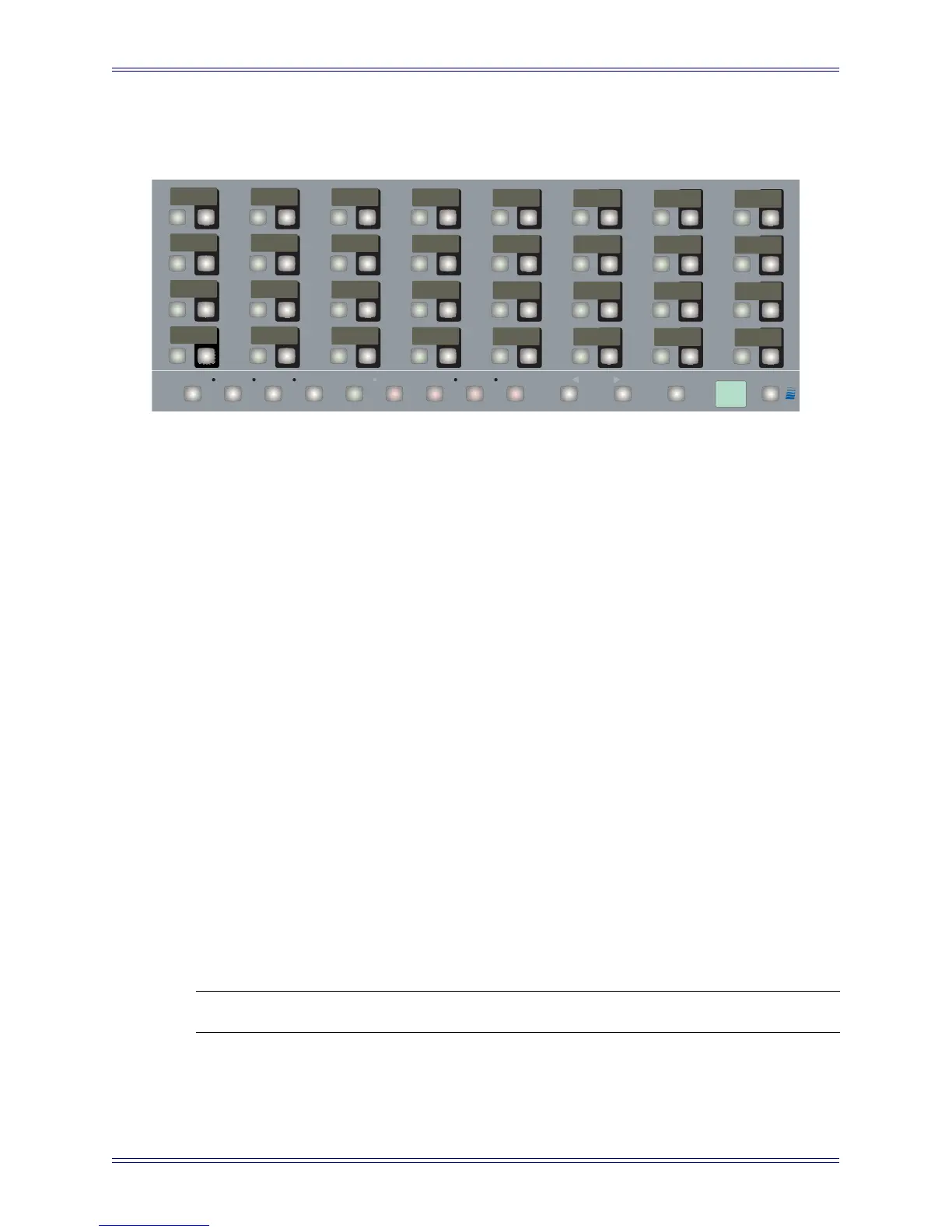

Figure 6-2 Channel Select Panel
The Channel Select Panel provides easy physical access to any channel or Control
Group in your System 5 configuration. It defaults to displaying the first 32 channels,
each with a four-character LCD display, ON/Solo, and Channel Select keys.
• The Page keys display additional channels in groups of 32. If the Scroll key is
lit, the Page keys display one new row of channels (eight) instead of 32.
• The right key beneath each channel’s LCD display assigns that channel or Con-
trol Group to the Center Strip, replacing the channel in the active layer (Swap
or Main). This key functions identically to a CM408 Strip’s Wave key.
• The Number key toggles between displaying the channel or Control Group
number (key is lit) and the name.
• The Group key toggles between displaying channels and Control Groups (key
is lit).
The global ON and Solo keys on the bottom of the panel determine whether the left key
on each channel’s controls performs an On/Off or Solo function. The ON and Solo keys
cannot be lit simultaneously and intercancel:
• If ON is lit, the key turns the Control Group or Channel On/Off.
• If Solo is lit, the key Solos the Control Group or Channel.
• If both are unlit, the key has no effect.
NOTE: The Wave key at the far right of the Channel Select Panel is not functional.
raelCetsaPypoCpirtSretsaMpuorGrebmuN
ON
llorcSegaPolos
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
solo
swap
mstrs
C1
C9
C17
C25
C2
C10
C18
C26
C3
C11
C19
C27
C4
C12
C20
C28
C5
C13
C21
C29
C6
C14
C22
C30
C7
C15
C23
C31
C8
C16
C24
C32
