System 5 Digital Audio Mixing System Operation Manual CM403 Film/Post Module
224
15.3 Joystick Module
Two joysticks are housed in a full-width panel mounted in a CM403 module.

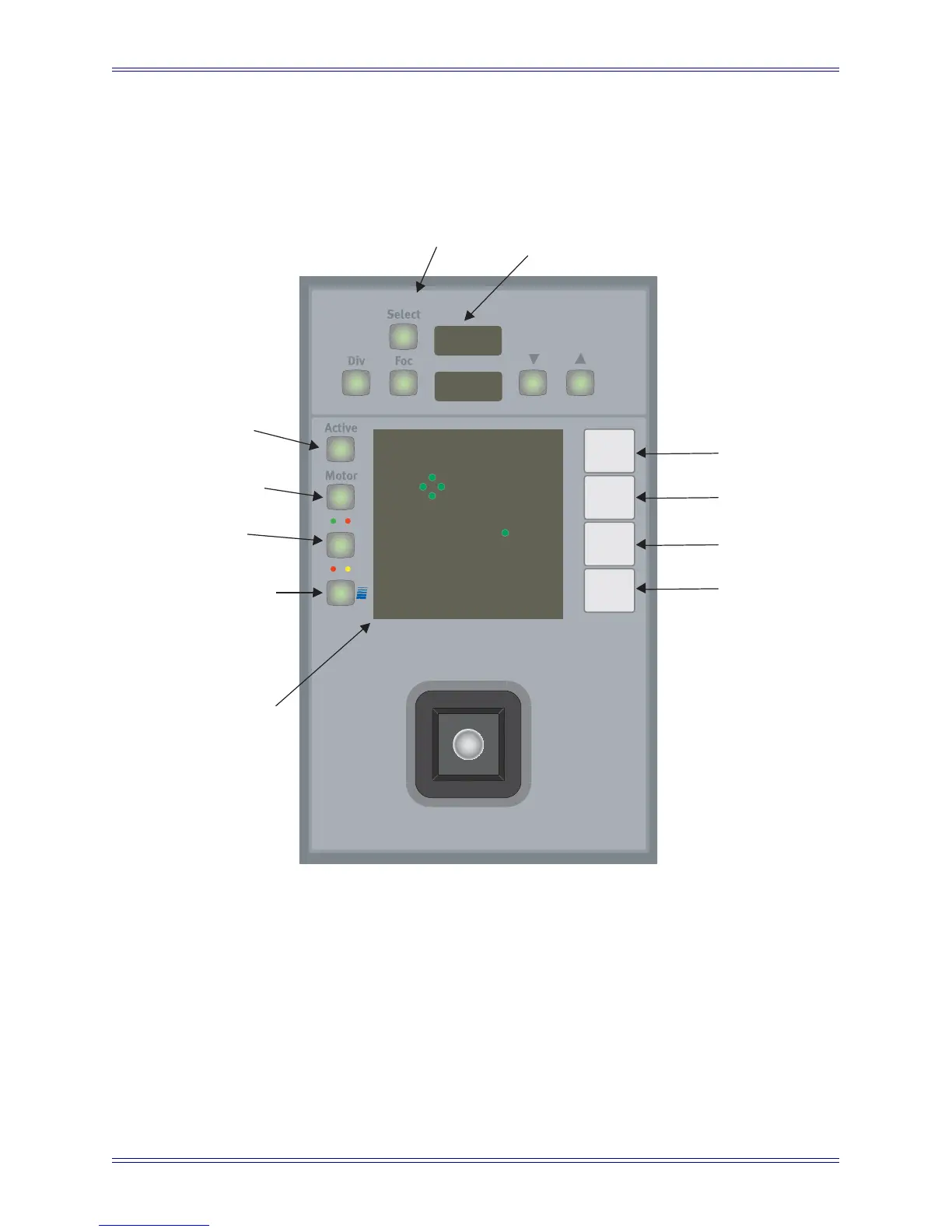

Figure 15-11 Joystick Panel controls
15.3.1 Assigning a Channel to a Joystick
Assign a channel to the joystick with the same key strokes used to assign a channel to
a strip (see Map Channels and Control Groups to Strips on page 97).
100%
C1
Pan
L/R
Snd
F/B
Link
Solo
Pan Engage
Surround Engage
Link Key
Turns joystick
motor on and off
Joystick
Select/Punch key
Wave key is used with
Select/Punch key to set
automation mode, link to
a strip, or lock from layouts
Joystick position matrix
is 19 x 19 LEDs. A
single green LED
indicates the current
position and a diamond
represents the
Select key
Channel
Display
Solo Channel
Activates the joystick
– when off, channel is
not being controlled
underlying automation.
Chan
