System 5 Digital Audio Mixing System Operation Manual CM401T Master Section
70
Aux Busses
Press the Aux key at bottom right of the Comms:Talkback Panel to display the Aux
busses. The same rules apply to the Aux Busses as monitors. Select the Aux Busses
(single or pairs) to route the talkback signals. They latch or are momentary based on the
Tbk Ltch setting and their levels are set on the Mons page.
5.2.2 Listenback
Press the Lsn key at the bottom of the Comms:Talkback Panel to display the
Comms:Listenback Panel (Figure 5-6).

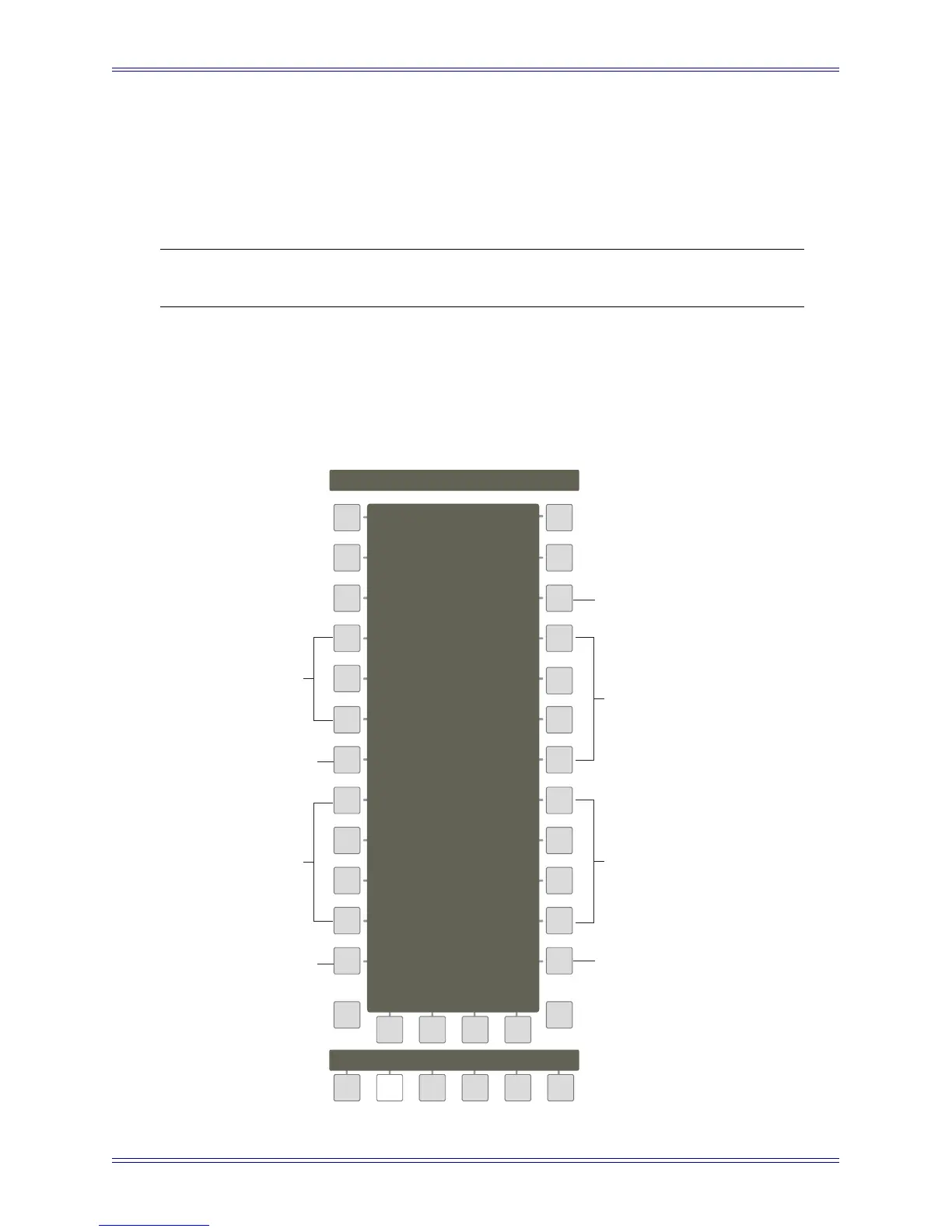

Figure 5-6 Comms:Listenback Panel
Main
Panel
Info
Comms: Listenback
Lsn>Flw
4>Lsn
1>Lsn
All>Lsn
Talk Lsn OscSlt
Lsn>MonD
Lsn>Alt1
Lsn>Alt2
3>Lsn
2>Lsn
Lsn>MonA
Lsn>MonB
Lsn>MonC
Lsn1 -14.2
Lsn2 -14.2
Lsn3 -9.00
Lsn4 -9.31
Lsn Ltch
DimCR
Listen mic
speaker
assignment
Listen mic
follows active
CR speaker
Listen mic
monitor
assignments
Dims CR
when Listen
mic is on
Listen mic
level control
Listen mics
latch when active;
momentary when
inactive
Listen mics
On/Off
All Listen mics
on when active
-
+
NOTE: The talkback signal must be patched in order to be routed to the Aux Bus-
ses. See 4.2.8 Talkback Signal Patching on page 50.
