The letters at the far left of Figure 4-16 denote the 16 mix sections. The letters “I” and
“L” have been omitted to avoid being confused with one another. Click the cell to the
right of the letter to name the section. The number of busses available is indicated by
the blue area in Figure 4-16 (i.e., there are 32 busses). The gray area represents busses
that are not available due to the present system configuration.
4.3.1 Law Palette
To set the pan law for a mix section:
1. Click and drag across the busses you wish to configure.
2. Right-click on any of the selected cells to display the Law Palette.

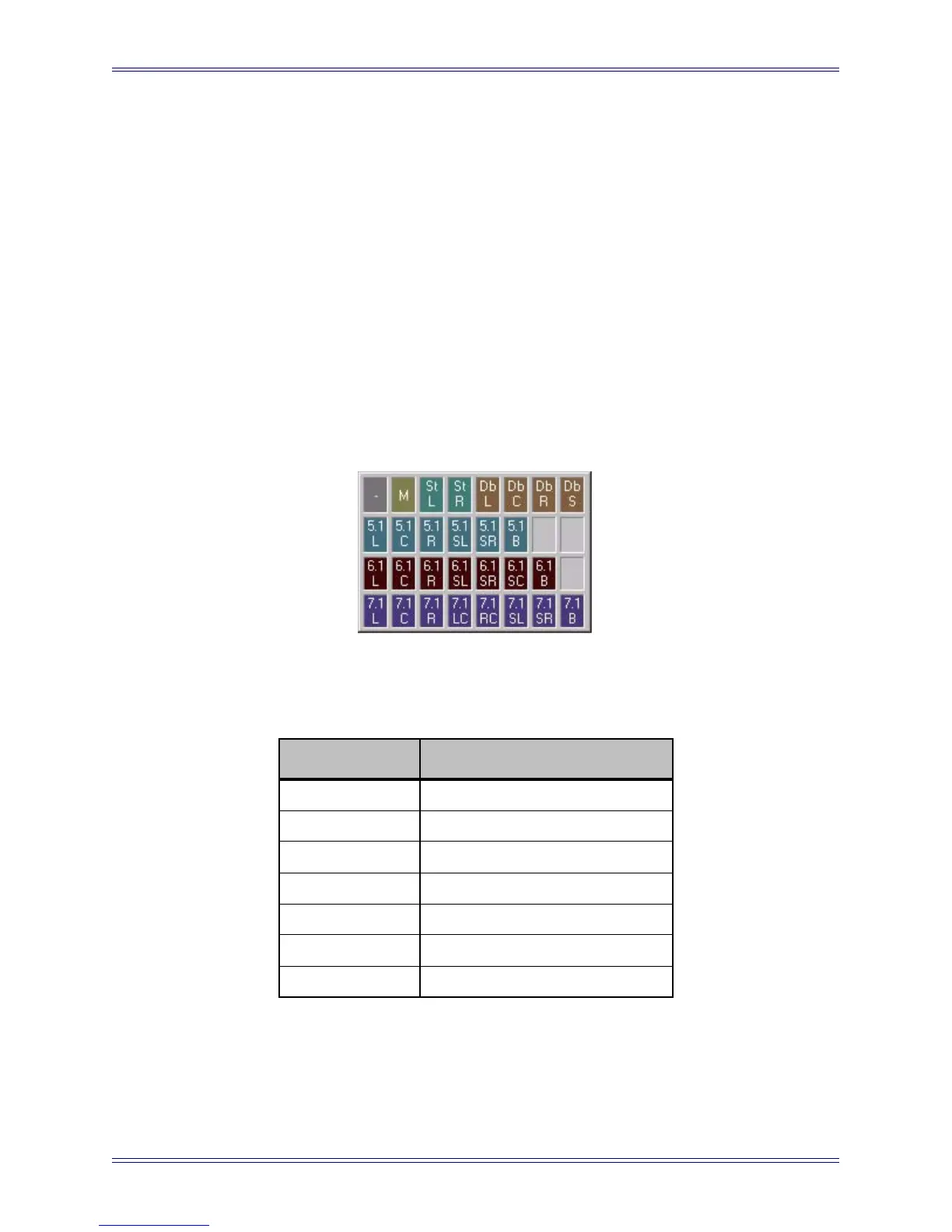

Figure 4-18 Law Palette
The possible formats are:
Table 4-1 Law Palette Formats
Symbol Format
- remove an existing law from a bus
mono M
stereo St L, St R
Dolby Surround Db L, Db C, Db R, Db S
5.1 L, C, R, SL, SR, B
6.1 L, C, R, SL, SR, SC, B
7.1 L, C, R, LC, RC, SL, SR, SC, B
To clear all Mix bus configurations, click on the Clear All button in the upper left
corner of the Mix Bus Window.
