Expander/Gate (Page 2)
The expander parameters are shown in Figure 8-15.
xHys: Hysteresis (dB) sets the level that the gain of the expander must fall below
to turn off. This prevents the expander from turning on and off if the level hov-
ers around the threshold.
xKne: knee (0–30)
xRat: ratio (infinity:1 = gate)
The lower switch next to the xRat knob switches the expander in/out.

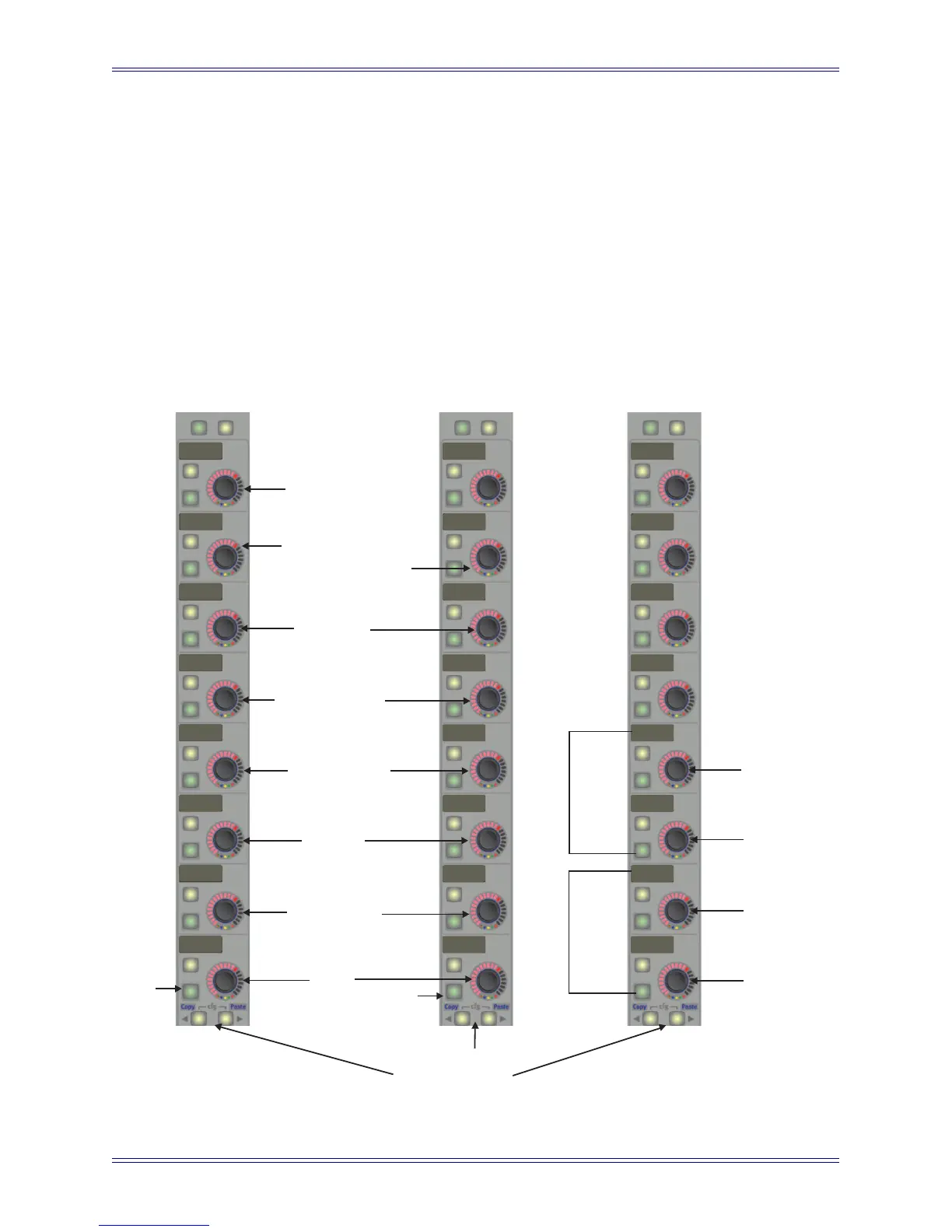

Figure 8-15 Expander/Gate, Compressor, and Sidechain/filters knobset pages
Page keys display other
Dynamics pages
Expander/Gate (page 2) Compressor/Limiter (page 3)
Dynamics
Filter
Infinity:1 =
Gate
Infinity:1 =
Hard Limiter
Sidechain
Sidechain/filters(page 4)
xHys
xHld
xDpt
xRel
xAtk
xKne
xThr
xRat
cGM
cDpt
cRel
cAtk
cKne
cThr
cRat
DFfr
DFtp
SC
Type
Hysterisis (dB)
Hold time (ms)
Depth(dB)
Gain Makeup (dB)
Release time (ms)
Attack time (ms)
Knee (dB)
Threshold (dB)
Expander
In/Out
Ratio
Compressor
In/Out
Sidechain
filter frequency
Sidechain
filter
type
Sidechain
source
Sidechain
detector
type
