5.4 Meters
The System 5 meters are displayed on the TFT screen at the top of each Strip. Each
Strip’s meter can be set independently and can measure:
• Channel: the fader, Swap, Main, or any channel, even one not assigned to that
Strip. There is an option to display two meters to track different information.
When displaying one meter, the dynamics gain reduction is shown to the right
of the channel meter (Figure 5-10).
• Group, Mix, Aux: Any Group, Mix, or Aux Bus.

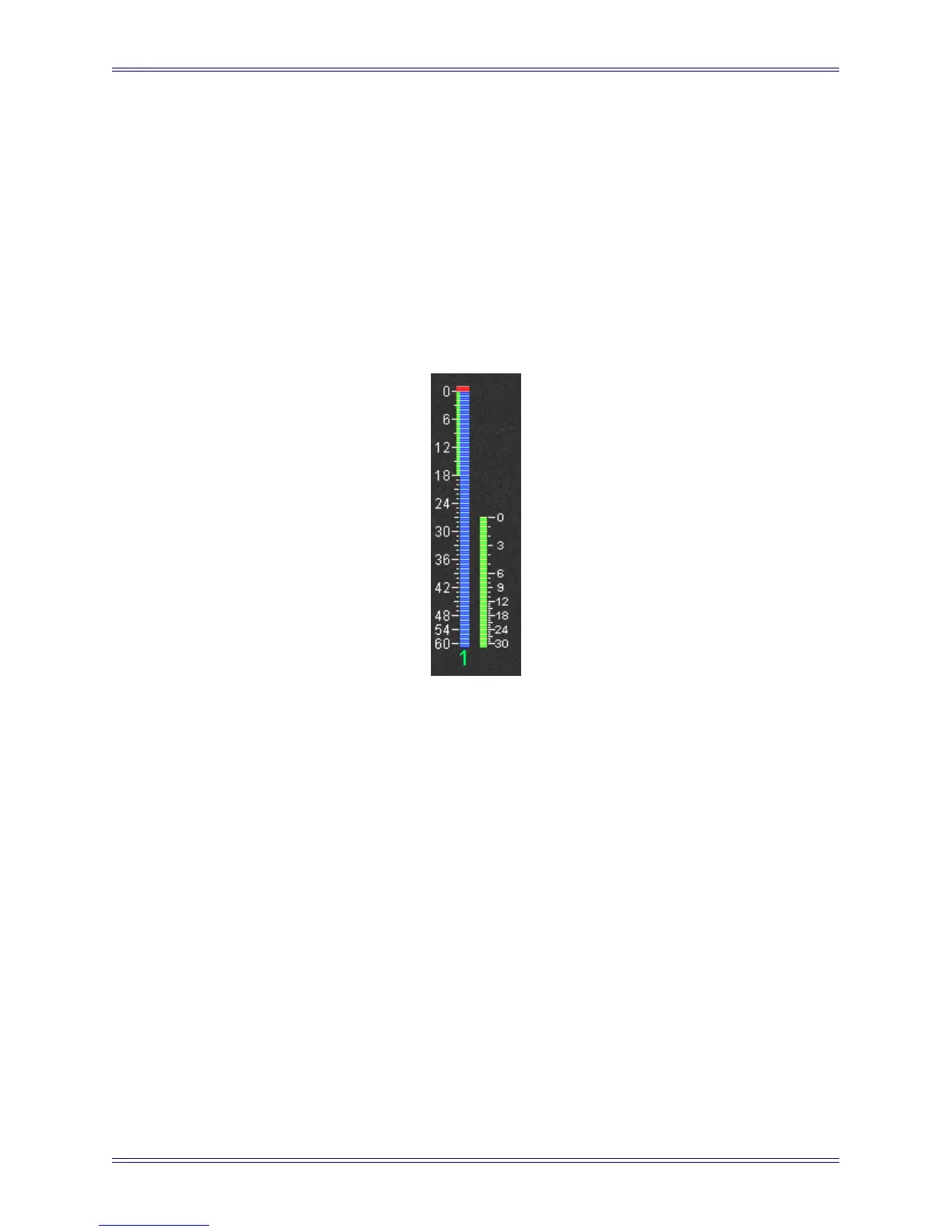

Figure 5-10 Channel meter with dynamics gain reduction meter on right
5.4.1 Meters Panel
From the Main Panel, press the Meters switch to display the Meter Presets Panel (left
of Figure 5-11). Twenty four meter presets can be stored and recalled via the Meter
Presets Panel. Before creating presets, configure each Strip’s meters.
