System 5 Digital Audio Mixing System Operation Manual Quickstart to Common Tasks
28
4. Connect the CD’s digital output (AES or SDIF) to channels 1 and 2 on the
DM714.
The DM714 should already be connected to DF66 1-1.
5. Select Sources, then select Frame 1-1 from the left of the screen.
6. Under Sources - Frame1-1, click in the Name column for channel 1 and
name the device CD Player Left; click in the Name column for channel 2 and
name it CD Player Right.
7. Click the green selection fields to add the patch points to Selected - Sources.
8. Click the Patch button.
9. Select Console I/O, click in the Name column for channels 1 and 2 and name
them CDL and CDR, respectively.
10. Press the Main Panel key and select Channels.
11. Press the Setup key and then press Show Input Names.
This displays the input names on the TFT display above the channel.

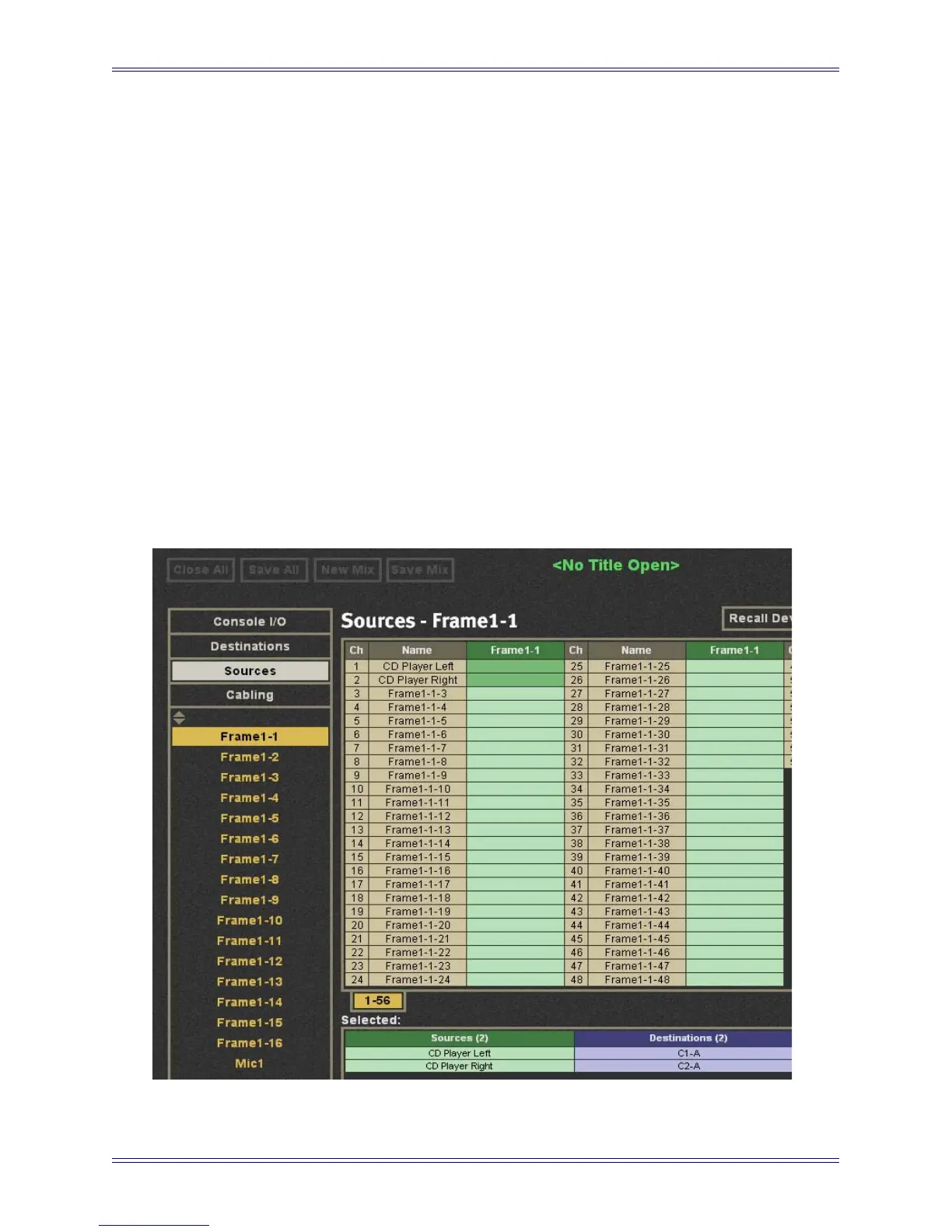

Figure 3-2 Sources page in PatchNet
