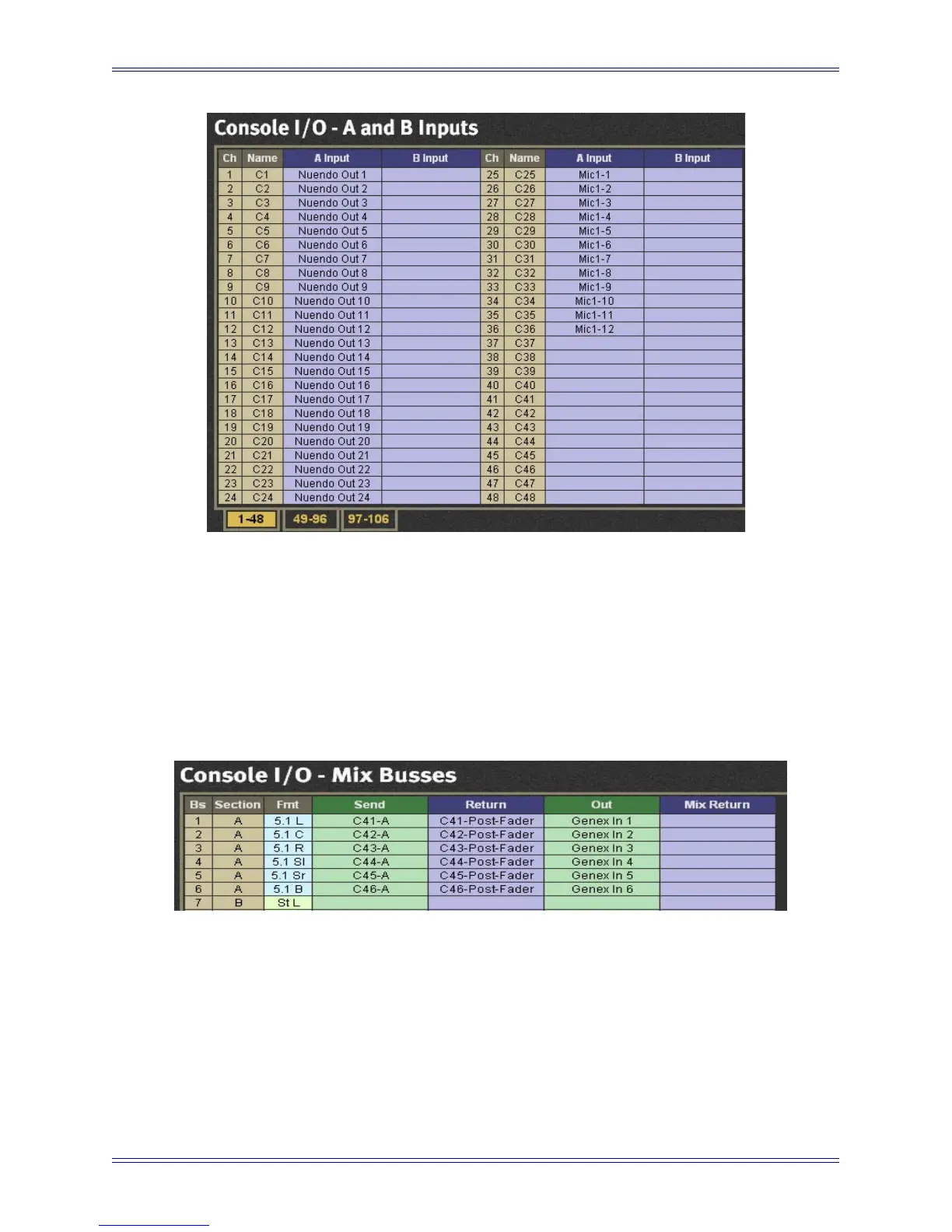

Figure 4-14 Nuendo and mics patched
4.2.5 Mix Bus Send/Return
Click the Console I/O category and then click the Mix Busses sub-category. Each mix
bus has a send and return. In Figure 4-15, the first six sends (a 5.1-channel mix section)
are routed to channels 41–46 A inputs. The insert is switched in/out from the Bus
Masters Config Page (see Bus Master Inserts on page 94).
Figure 4-15 Mix Bus Send and Return
For every Mix Section, there is a corresponding return in the same format, which allows
patching the Mix Section recorder output back into the console. The Mix Section Return
can be routed to the monitors from the Mix Section page in the CR Source Panel (see
Control Room Monitor Controls on page 64).
