System 5 Digital Audio Mixing System Operation Manual eMix Application
57

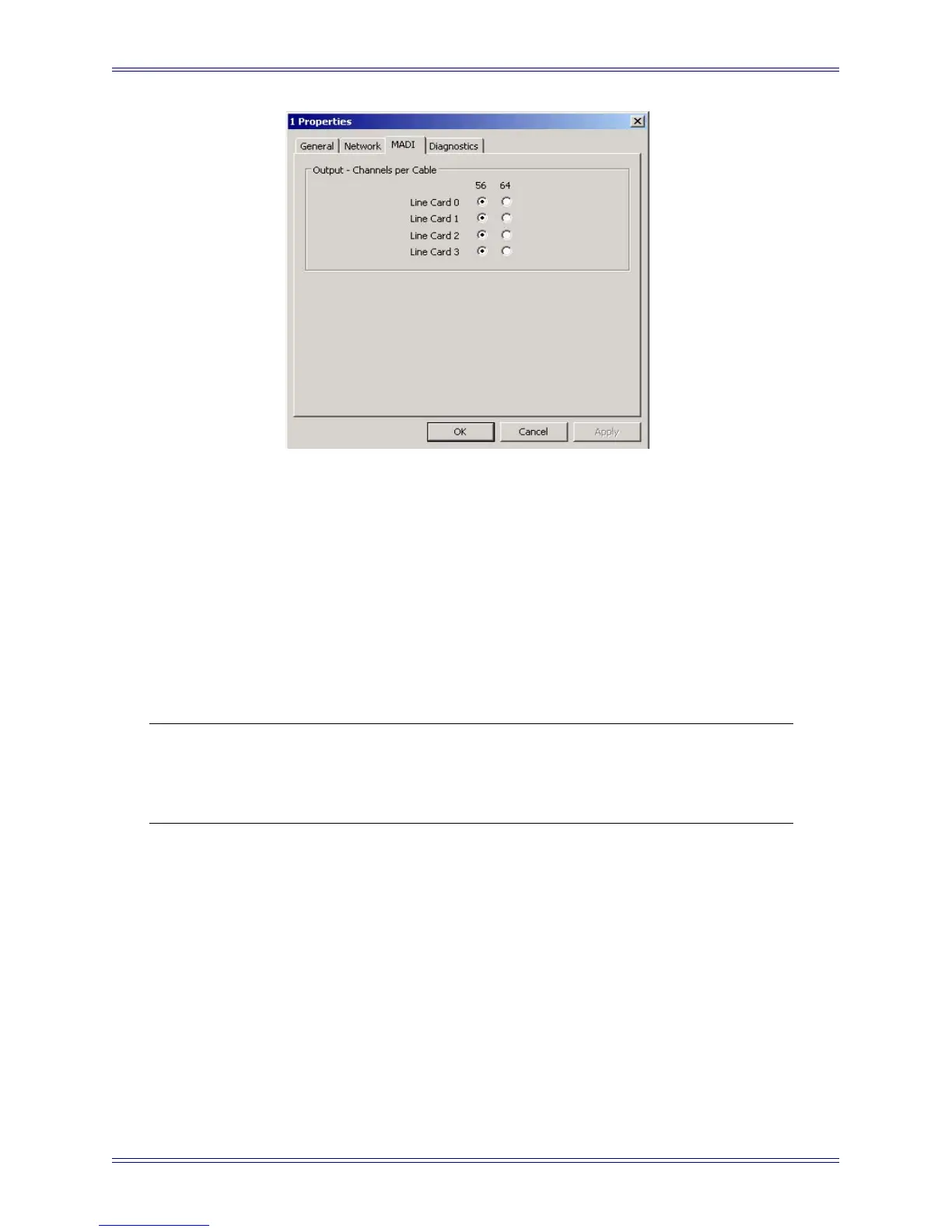

Figure 4-22 Euphonix Control Panel DF66 Properties MADI menu
If the system has a backup DF66 core, click on the DF66 ID1-A to high-
light it, then the Properties button, and MADI tab to change Line Card
setting(s).
3. Find the Line Card that the 64-channel MADI device(s) is connected to,
and change its setting to 64.
4. Click on the Apply button to affect the change.
NOTE: Changing the MADI channel setting on a Line Card affects all eight of its
MADI ports. 56-channel MADI devices, such as the SH612 Studio Hub and
FC726 Format Converter, will not be compatible with the Line Card at its 64-
channel setting.
