System 5 Digital Audio Mixing System Operation Manual CM401T Master Section
63

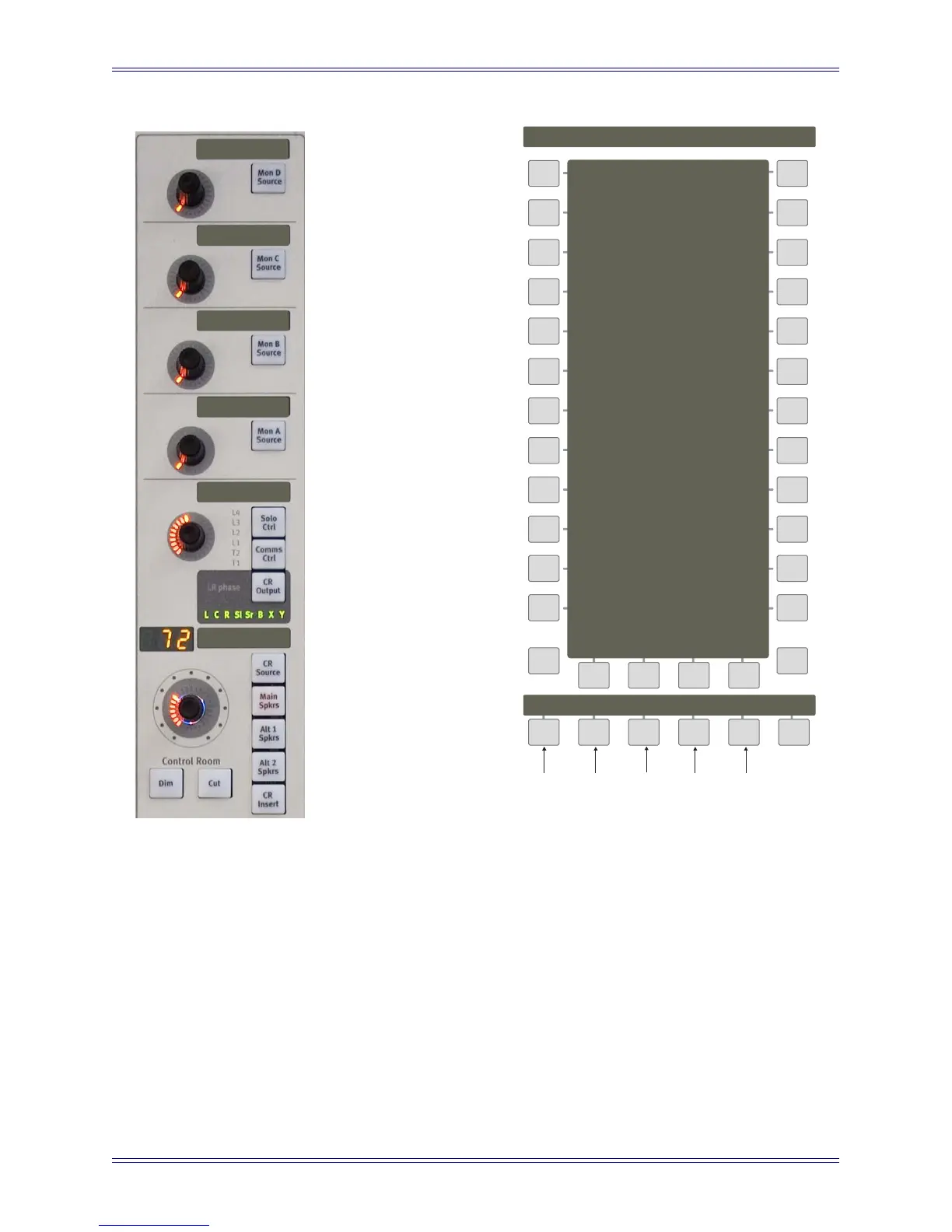

Figure 5-3 Monitor Controls and MonD Source Panel
Use the keys on the bottom of the Panel to select the type of source: External (CD, VTR,
etc.), Aux Sends, or Mix Sections. The current source type key lights and available
sources within that type appear in the Panel. Press a key along the sides of the Panel to
select a source. The active source key lights and the name appears in the LCD display
for that monitor output.
Main
Panel
External
Sources
Info
MonD Source:Ext
Stereo 1
Stereo 2
DAT 1
DAT 2
DVD
Satell
Ext Aux Mix
Sum
FlwCR
8 Track 1
8 Track 2
Receive
VTR 1
VTR 2
CD
Page
Aux
Sends
Mix
Sections
External Follow
Control
Room
Selection
Sum
Sources
VTR 1
CD
VTR 2
Mix 2
Solo
Mix 1
â—„ â–º
