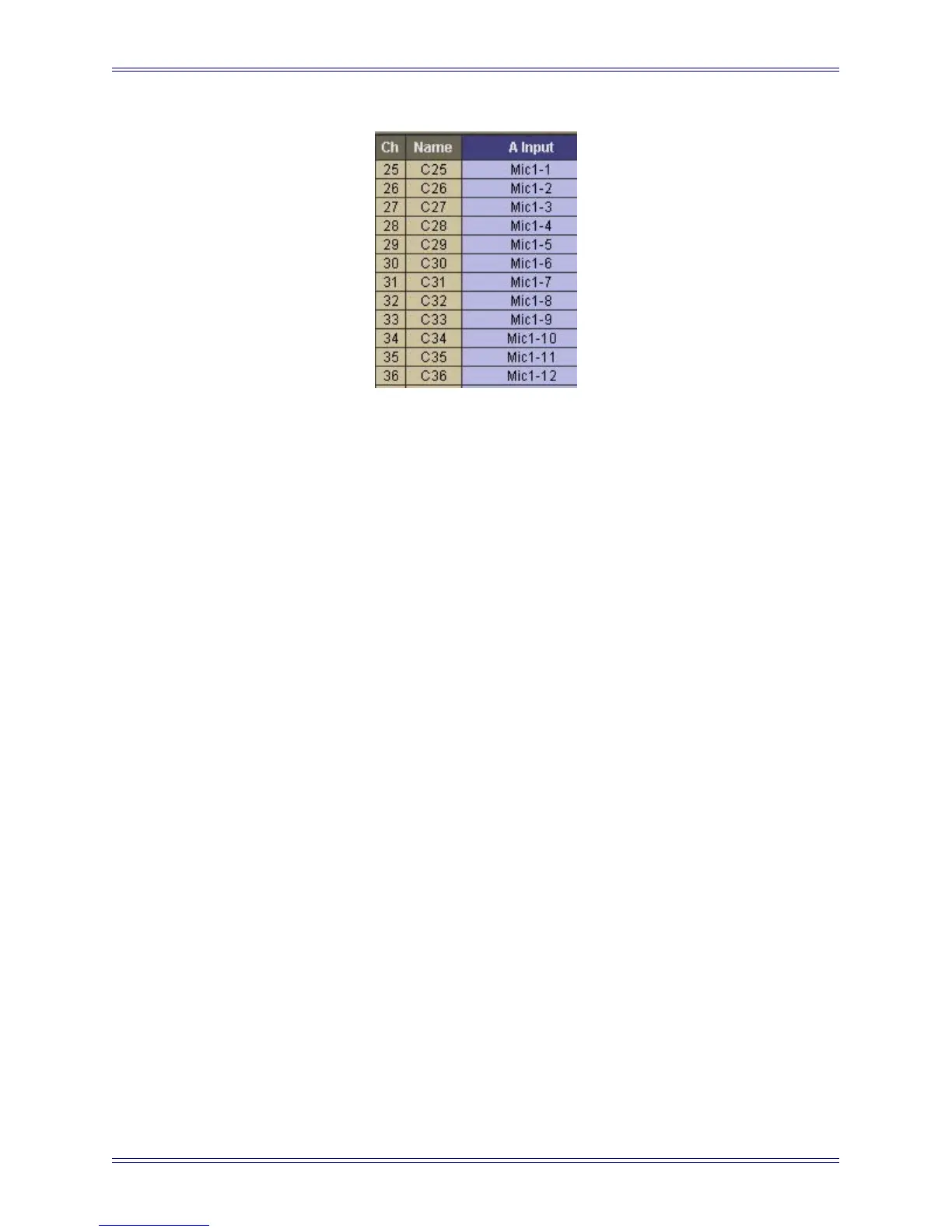

Figure 4-13 Mics Patched to Channels
Patch the multitrack returns into channels 1–24
1. Click on the Sources category.
2. Click on the Frame1-3 sub-category.
3. Click and drag through the first 24 cells in the Frame1-3 column.
These cells are highlighted and their names appear in the Sources column in
the Selected: window below.
4. Select the Console I/O category.
5. Select the A and B Inputs sub-category.
6. Click and drag through the first 24 cells in the A Input column.
These cells are highlighted and their names appear in the Destinations column
in the Selected: window below.
7. Click the Patch button to make the connection.
The sources and destinations appear in the A Input and Name columns, re-
spectively. The sources and destinations are cleared from the Selected: area.
After connecting the 12 mics and the Nuendo returns, the Console I/O A and B
Inputs Window is shown in Figure 4-14.
