System 5 Digital Audio Mixing System Operation Manual CM403 Film/Post Module
218
15.2.2 The Monitor Utility Section

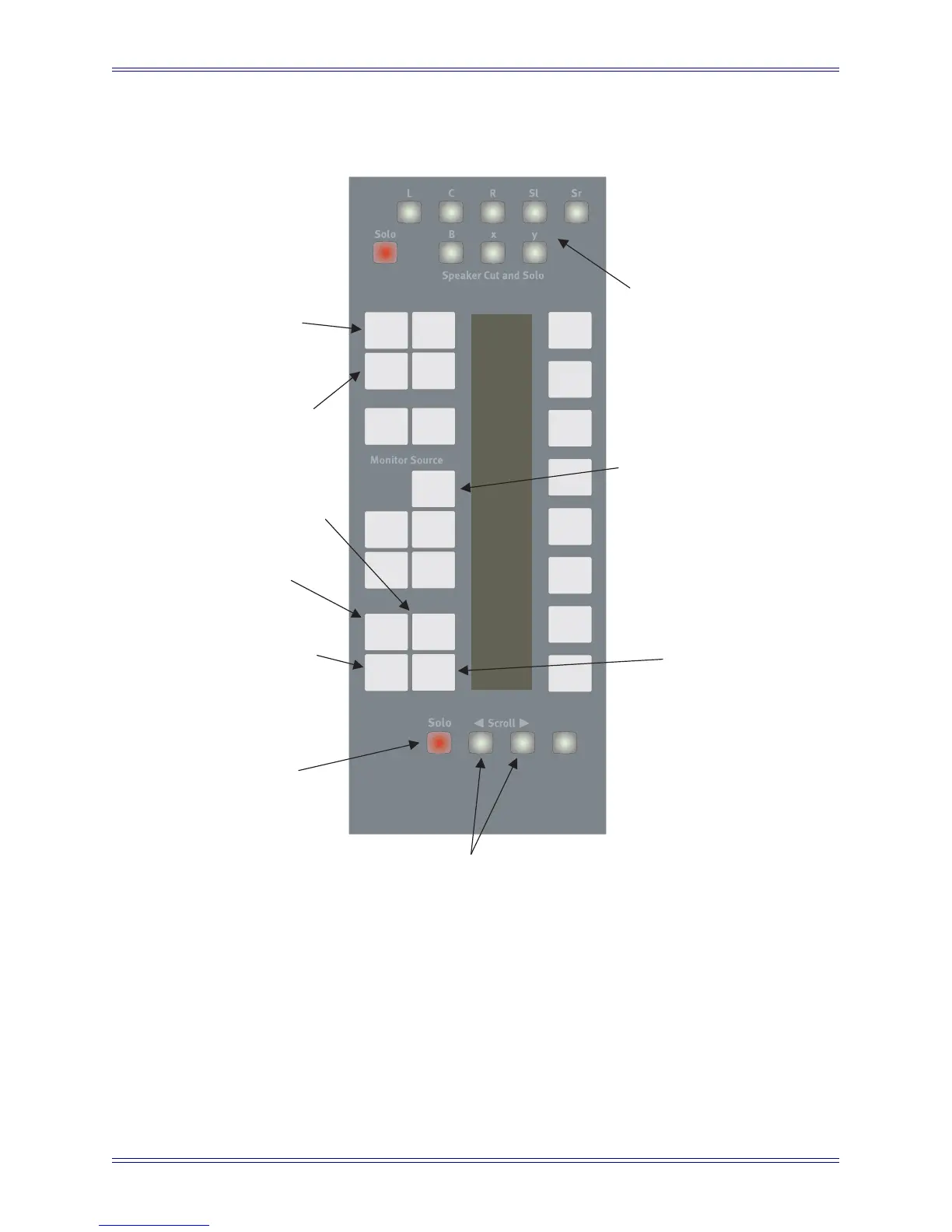

Figure 15-5 Monitor Utility Section
Most of these functions already exist on the current CM401T (see Section 5.1 Moni-
toring). The new features are Spkr Asgn, (Speaker Re-Assign) and Lock.
Ext's
Cut
Dim
Alt 1
Spkrs
Main
Spkrs
Alt 2
Spkrs
Monitor
Insert
Spkr
Asgn
Lock
Fold
Down
Solo
Ctrl
Rec's
Dia
Mus
FX
Talk
Speaker Cut and Solo .
Direct access to the speaker
On keys. User can also solo
a speaker by selecting the
Solo key rst. Turning solo
o returns the speakers to
their previous state.
The FoldDown switch brings up
the monitor modes on the
displays to the right,
(i.e., mono, stereo, 5.1 etc.)
Monitor Source - Rec's brings up
the Bus Sections (Recorders) on
to the displays to the right where the
user can select them. This is the
same as the On keys on the
PEC/DIR panel.
Ext's will display the Externals
Spkr Asgn - allows user to
reassign a bus to a dierent
speaker. By default the system
automatically assigns the busses
to the correct speaker based on
the format of the bus.
Monitor Insert - toggles
the main monitor bus
inserts in and out.
Main or Alt monitor
select
ion and monitor
Cut and Dim.
(same a CM401)
Scroll keys- scrolls the displays to allow access to
more than 8 bus-sections or externals.
Solo Control-Selecting Solo
Control brings up selection of
Summing, Intercanceling, or
Momentary for Stems. Also alows
Solo Safe to be set by selecting
the Exp/Sel switch.
Solo - allows user to
solo externals and monitor
sources.
Locks the Panel so no parameters
can be changed
