19 Wall Thickness Measurement (Optional) FLUXUS G60x
UMFLUXUS_G6V4-2EN, 2011-03-29 141
When measuring on a rough surface, applying too much of the coupling compound can
result in wrong measured values. A measurement on a very rough surface might be im-
possible (message NO COUPLING will be displayed). In this case, the surface has to be
smoothed.

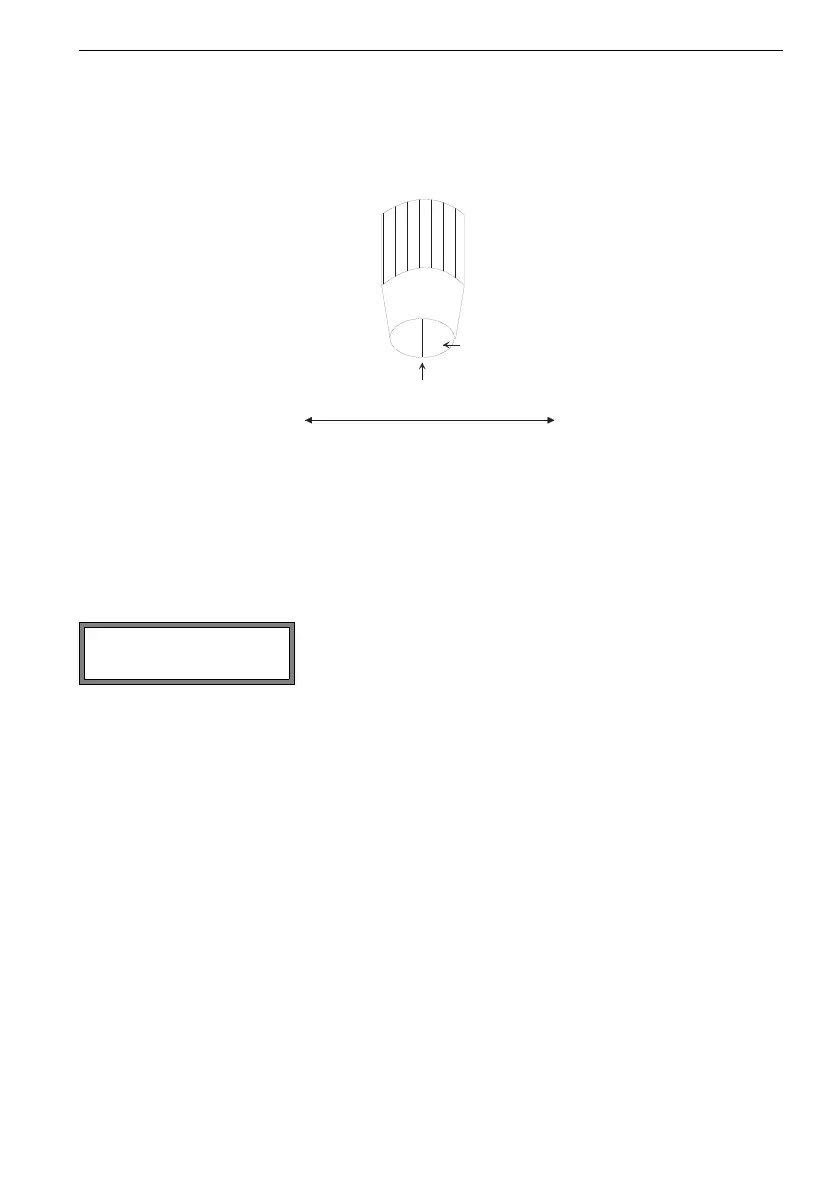

Fig. 19.2: Acoustic partition boundary
19.3.6 Storing/Transmission of the Wall Thickness
Press ENTER to stop the measurement and to store or transmit the measured value. The
following display appears if a valid wall thickness has been measured and a measured
value transmission is activated.
19.3.7 Stopping the Wall Thickness Measurement
To quit the wall thickness measurement mode, disconnect the wall thickness measure-
ment from the transmitter.
Select yes to store and/or transmit the measured value.
• The wall thickness can be transmitted into the current
parameter record.
• The pipe material will be replaced by the material used
for the wall thickness measurement.
If the serial transmission of data is activated, the measured
value will be transmitted.
K o p p e l f l ä c h e
P r ü f k o p f
a k u s t i s c h e T r e n n e b e n e
R o h r l ä n g s a c h s e
wall thickness probe
contact surface
acoustic partition boundary
pipe axis
