FLUXUS G60x 6 Installation of FLUXUS G601
6.6 Connection of the Inputs
6.6.1 Connection of a Temperature Input
Temperature probes Pt100/Pt1000 (4-wire) can be connected to the inputs of the trans-
mitter (optional) (see Fig. 6.10).
For the assignment and the activation of the temperature inputs see chapter 20.
6.6.2 Connection of a Passive Current Input
An active or a passive current source with an external power supply can be connected to
a passive current input.

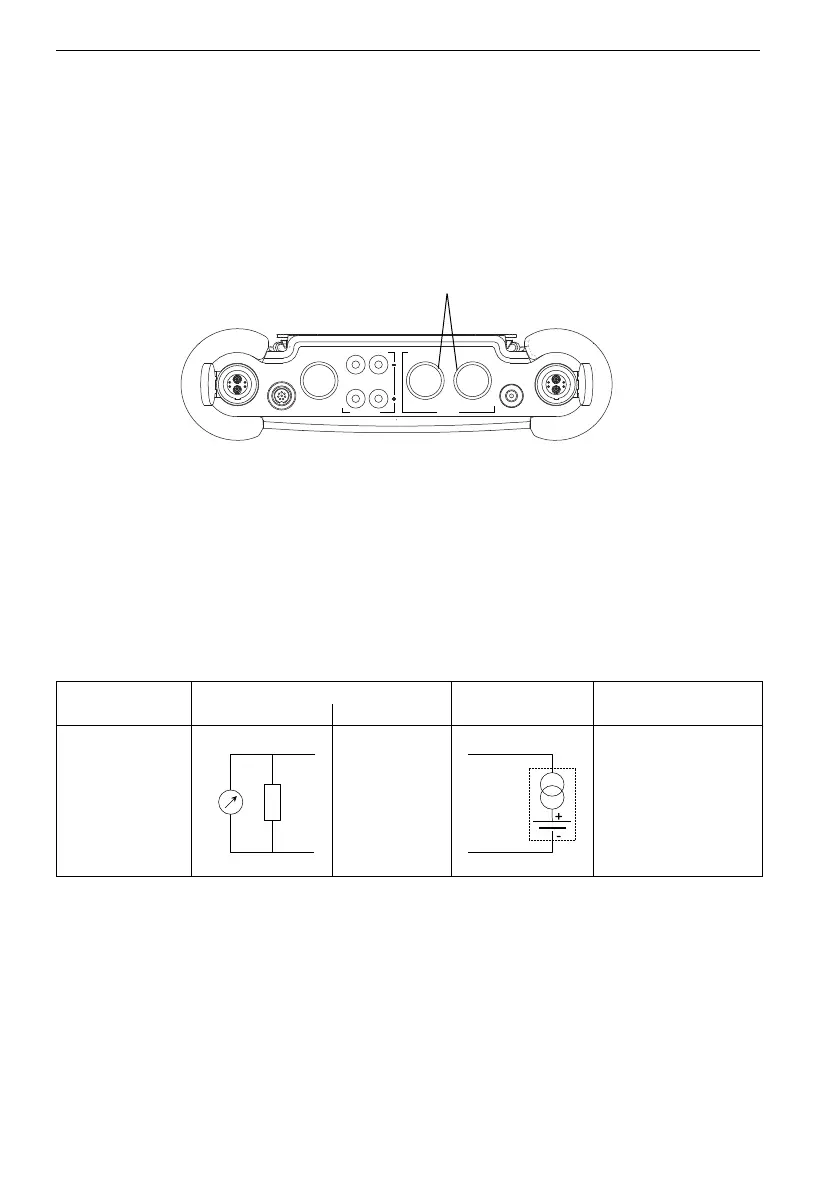

Fig. 6.10: Connection of the transmitter FLUXUS G601
Tab. 6.2: Connection of an active current source
input transmitter external circuits note
internal circuits connection
passive
current input

+
-
max. permanent 
overcurrent: 40 mA
CH A
COMM
P2 P1
Output Input
CH B
T1/T3 T2/T4
DC-IN
P3...P8
inputs
+
-
R
i
V
