FLUXUS G60x 8 Mounting the Transducers
• Repeat the steps for the installation of the damping mat on the opposite side of the
pipe in case of a measurement on the diagonal mode (see Fig. 8.3).
• Mount the transducers onto the damping mat. Select the installation instructions that
correspond to the supplied transducer mounting fixture (see section 8.2.1 or 8.2.2).
• If the measuring point is close to a reflection point (e.g. flange), damping mats must be
installed there, if necessary (see Fig. 8.4). The damping mats are mounted on the
complete circumference of the pipe. Repeat the steps for the mounting of the damping
mats.
8.3 Positioning of the Transducers
The transducers are mounted in such way that the engravings on the transducers form
an arrow (see ). The transducer cables show in opposite directions.
For the determination of the flow direction with the help of the arrow see section 11.8.

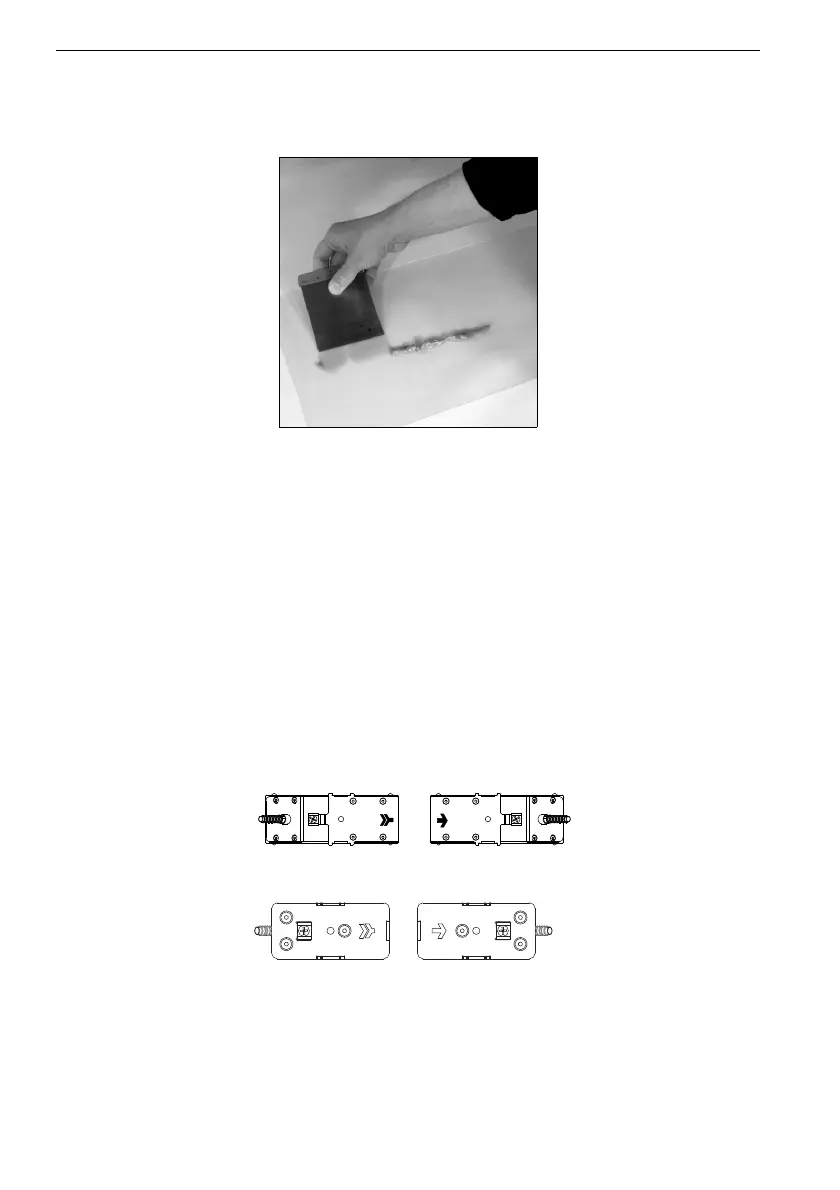

Fig. 8.5: Application of ultrasound gel to the damping mat
Fig. 8.6: Korrekte Positionierung der Sensoren
