FLUXUS G60x 8 Mounting the Transducers
• Repeat the steps for the installation of the damping mat on the opposite side of the
pipe in case of a measurement on the diagonal mode (see Fig. 8.3).

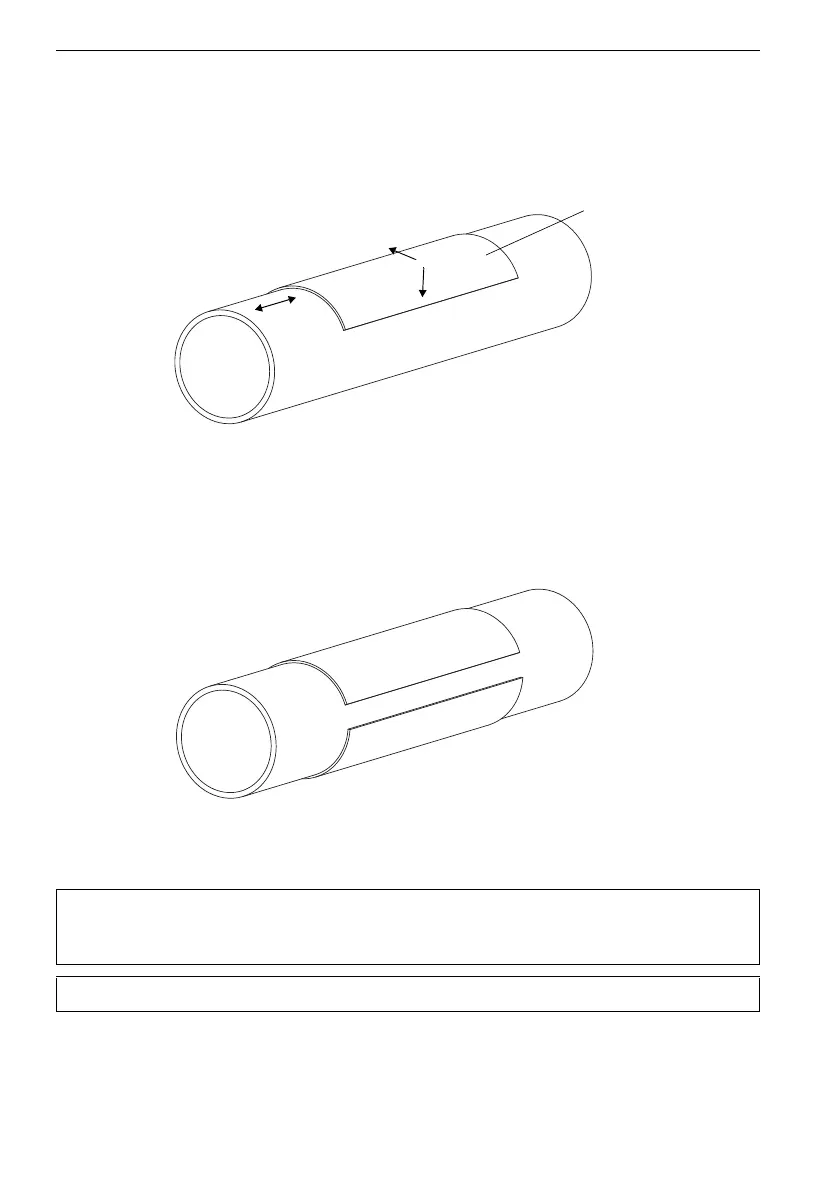

Fig. 8.2: Mounting of the damping mat (reflection mode)
Fig. 8.3: Mounting of the damping mat (diagonal mode)
Note! The damping mat adheres strongly to the pipe. Later alignment is
not possible. The damping mat has to be positioned correctly imme-
diately.
Note! The damping mat can not be reused after removal.
damping mat 
for the transducer
2
1
