FLUXUS G60x 6 Installation of FLUXUS G601
6 Installation of FLUXUS G601
6.1 Location
Select the measuring point according to the recommendations in chapter 4. The ambient
temperature must be within the operating temperature range of the transmitter and the
transducers (see annex B, section Technical Data).
6.2 Installation of the Transmitter
6.2.1 Placement
Push the support back to the stop of the support plate.
6.2.2 Hanging
Press both ends of the handle outwards and pass them past the support plate. Turn the
handle upwards.

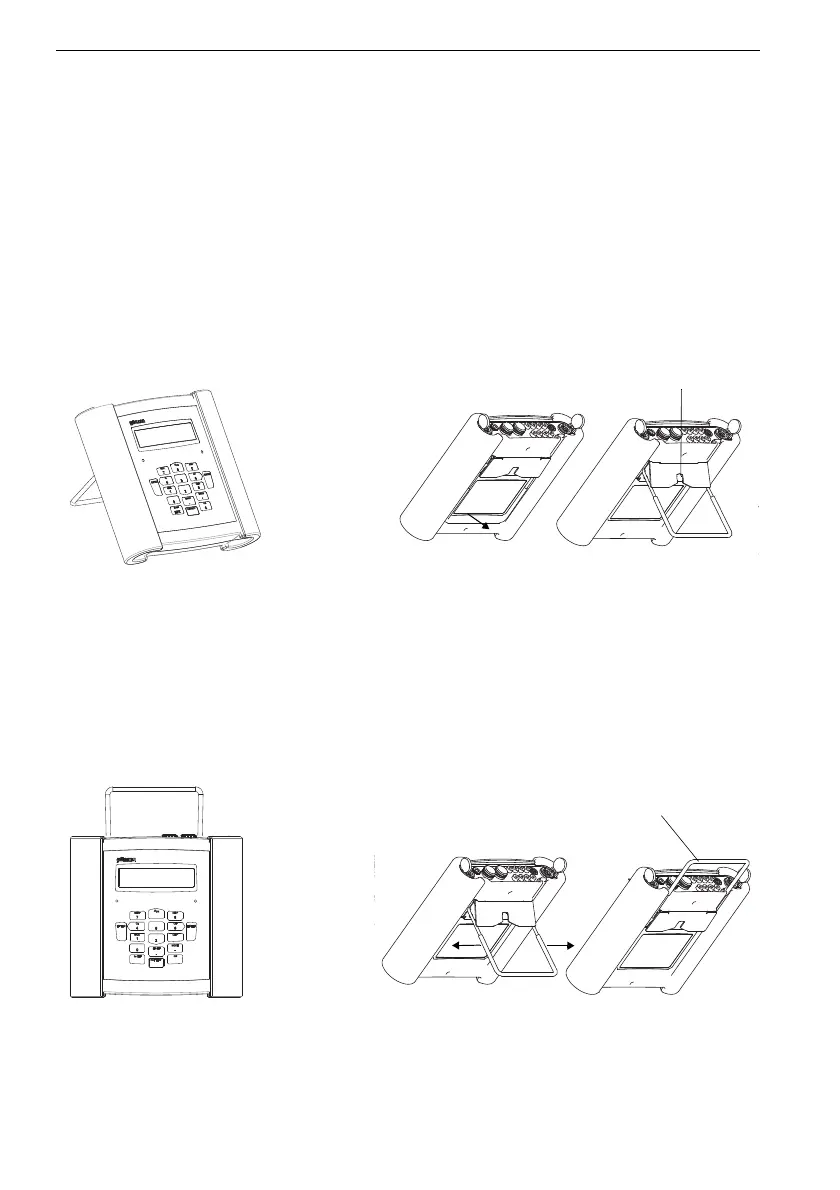

Fig. 6.1: Placement of the transmitter
Fig. 6.2: Hanging of the transmitter
support plate
3
C
B R K
8
handle
