6 Installation of FLUXUS G601 FLUXUS G60x
UMFLUXUS_G6V4-2EN, 2011-03-29 31
6.2.3 Installation on a Pipe
Fix the tension belt with the button to the pipe. Tighten the tension belt by means of the
ratchet. Insert the button into the aperture of the support plate on the back side of the
transmitter (see Fig. 6.3 and Fig. 6.4).
Attention! The pipe temperature must not exceed the operating temperature of
the transmitter.

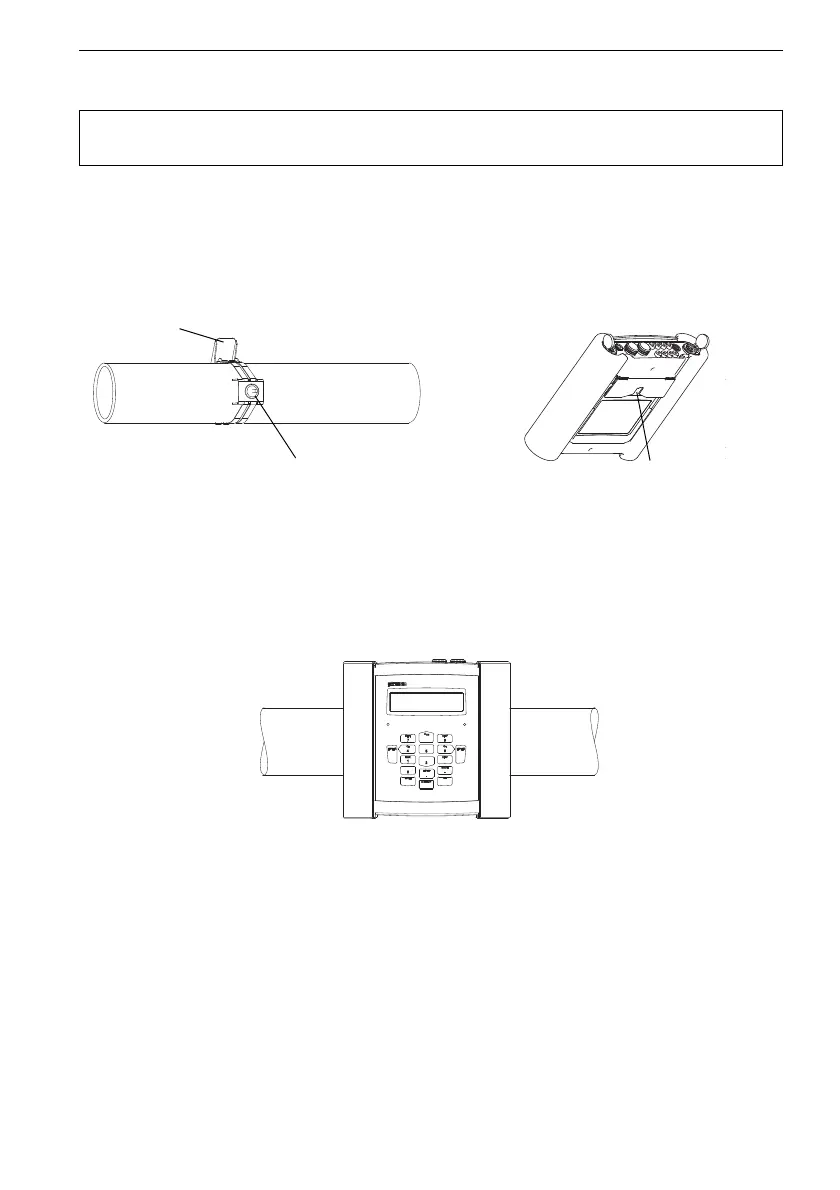

Fig. 6.3: Pipe installation
Fig. 6.4: Transmitter on the pipe
button on the pipe
ratchet
aperture in the
support plate
