9 Installation of the Temperature Probe (Optional) FLUXUS G60x
UMFLUXUS_G6V4-2DE, 2011-03-29 63
9.2.3 Installation With a Wuick Release Clasp
• Cut the tension strap to length (pipe circumference + 120 mm).
• Position the temperature probe on the pipe (see Fig. 9.3).
• Place the tension strap around the temperature probe and the pipe.
• Insert the tension strap into the clasp (see Fig. 9.5).
• Tighten the tension strap.
• Tighten the screw of the clasp.
9.3 Installation of the Temperature Probe (Response Time 8 s)
• Fix the protection plate and the insulation foam to the temperature probe (see Fig. 9.6).
• Apply a film of thermal conductivity paste (not supplied by FLEXIM) on the contact sur-
face of the temperature probe.

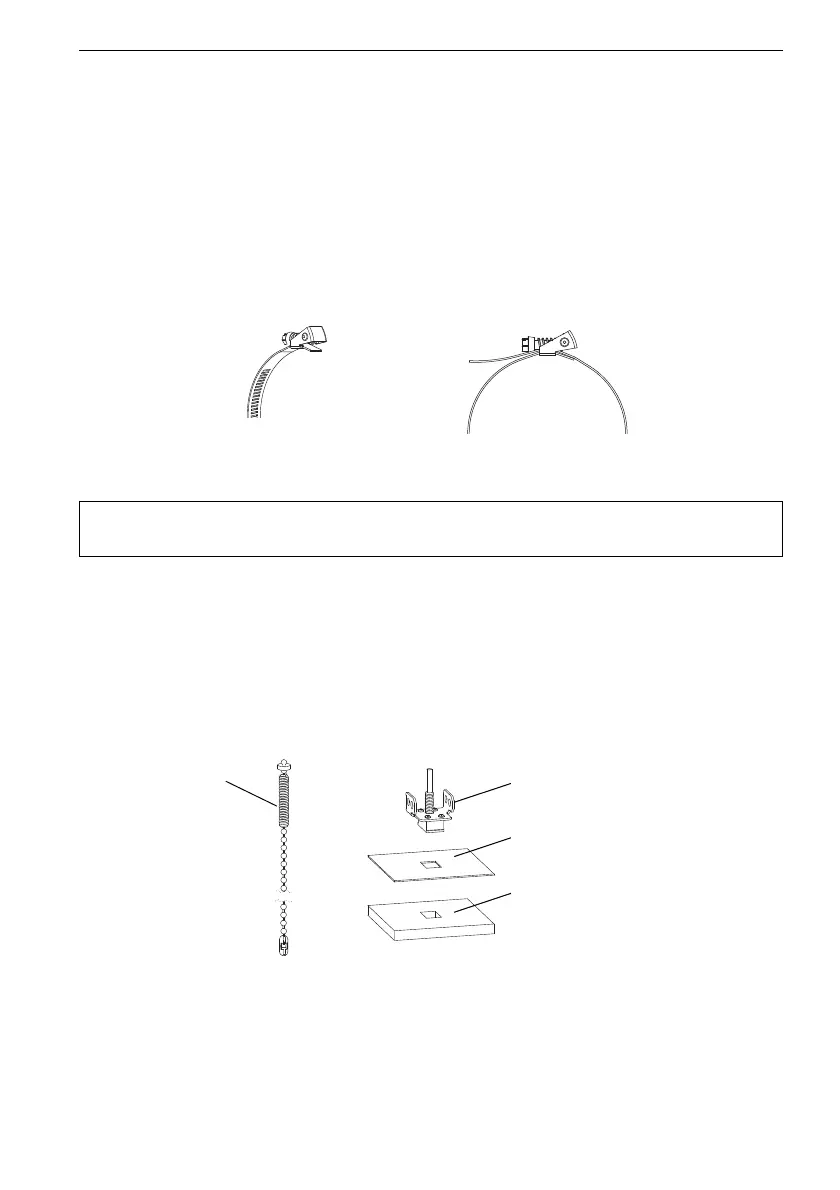

Fig. 9.5: Quick release clasp
Note! In case of great temperature differences, it is recommended to ther-
mally insulate the temperature probe from the environment.
Fig. 9.6: Temperature probe
temperature probe
protection plate
insulation foam
spring end
