62 UMFLUXUS_G6V4-2DE, 2011-03-29
FLUXUS G60x 9 Installation of the Temperature Probe (Optional)
• Position the temperature probe on the pipe (see Fig. 9.3).
• Place the tension strap around the temperature probe and the pipe.
• Insert the tension strap through the parts (2) and (1) of the clasp (see Fig. 9.2).
• Pull the tension strap firmly and engage it in the inner hooks of the clasp.
• Tighten the screws of the clasps.
9.2.2 Installation with a FLEXIM Clasp
• Cut the tension strap to length (pipe circumference + 120 mm).
• Push approx. 2 cm of the tension strap through the slot of the clasp (see Fig. 9.4).
• Bend the end of the tension strap back
• Position the temperature probe on the pipe (see Fig. 9.3).
• Place the tension strap around the temperature probe and the pipe.
• Insert the tension strap through the parts (2) and (1) of the clasp.
• Pull the tension strap firmly and engage it in the inner hooks of the clasp.
• Tighten the screws of the clasp.

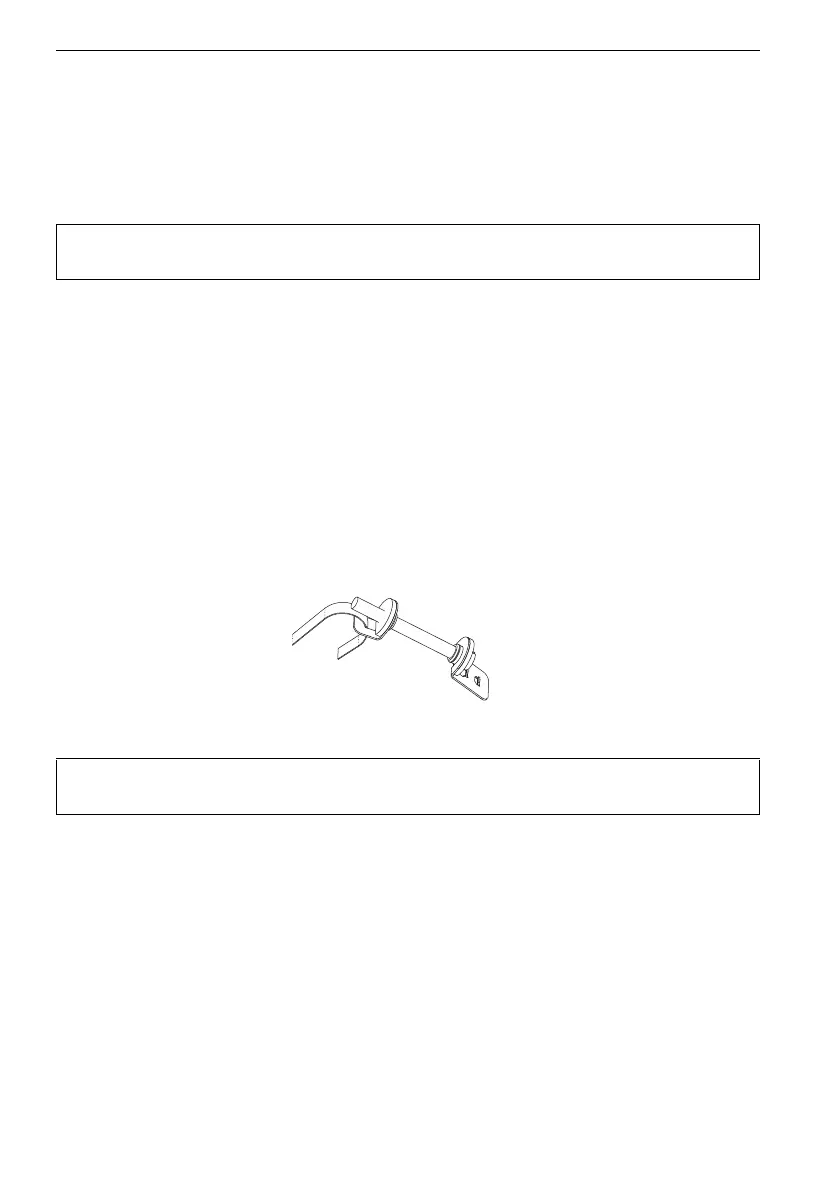

Fig. 9.4: FLEXIM clasp
Note! In case of great temperature differences, it is recommended to ther-
mally insulate the temperature probe from the environment.
Note! In case of great temperature differences, it is recommended to ther-
mally insulate the temperature probe from the environment.
