64 UMFLUXUS_G6V4-2DE, 2011-03-29
FLUXUS G60x 9 Installation of the Temperature Probe (Optional)
• Take the spring end of the ball chain and insert the last ball in one of the slots on the
upper side of the temperature probe (see Fig. 9.7).
• Place the chain around the pipe. Tighten the chain and insert it in the other slot of the
temperature probe.
9.4 Connection of the Temperature Probe
Connect the temperature probe to temperature inputs of the transmitter (see Fig. 9.8 or
Fig. 9.9 and Tab. 9.1).
Note! The entire contact surface of the temperature probe must always
rest on the pipe. In case of very small piped, the protection plate and
the insulation foam must be cut to size, if necessary.

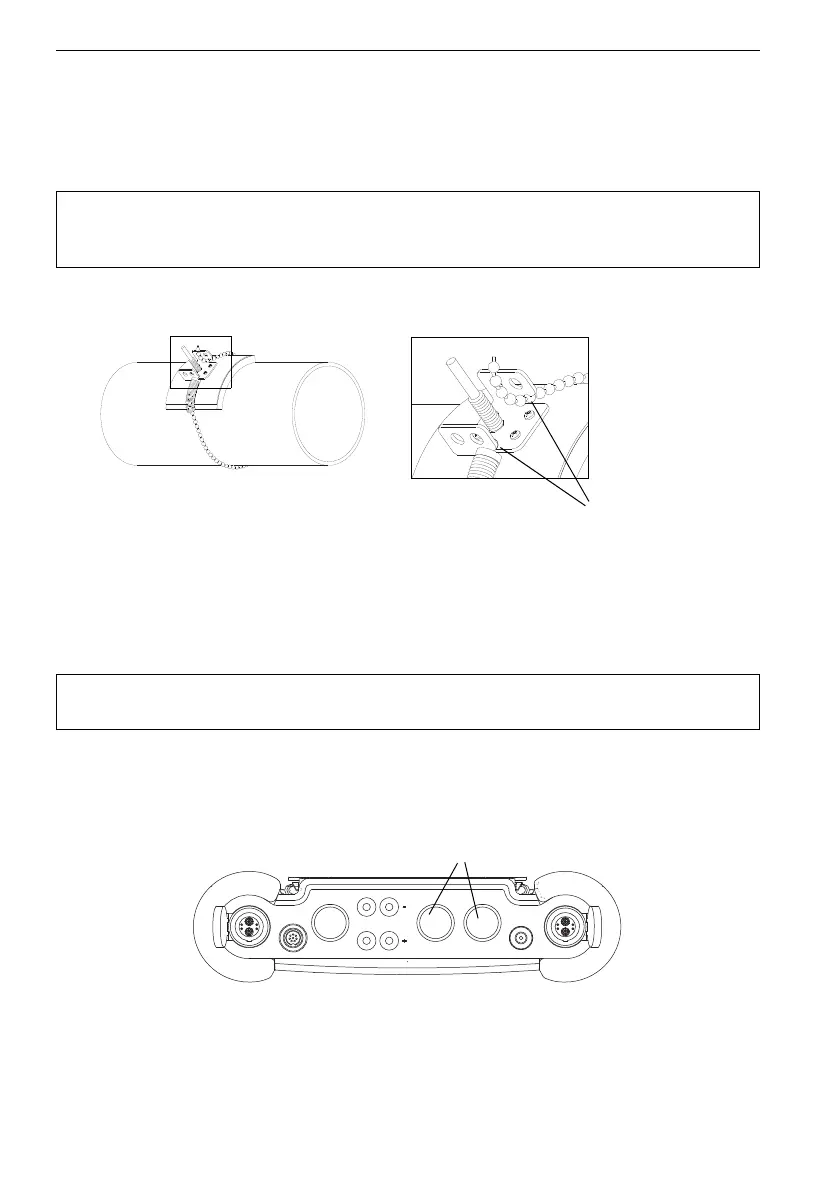

Fig. 9.7: Clasp
Attention! Observe the Safety Instructions for the Use in Explosive Atmo-
sphere (see document SIFLUXUS_608).
Fig. 9.8: Transmitter FLUXUS G601
slots on the upper
side of the tempera-
ture probe
