5 Selection of the Measuring Point FLUXUS G60x
UMFLUXUS_G6V4-2EN, 2011-03-29 25

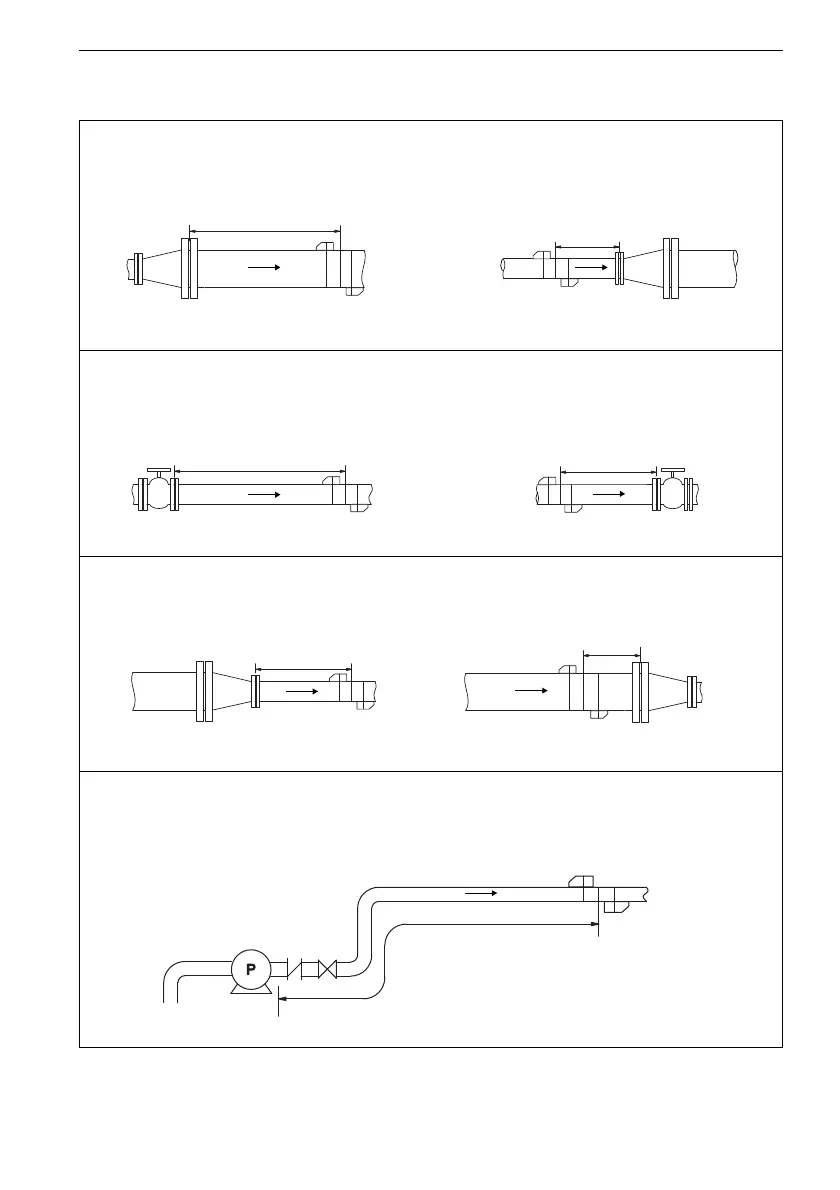

disturbance source: diffuser
supply line: l 60 D return line: l 10 D
disturbance source: valve
supply line: l 80 D return line: l 20 D
disturbance source: reducer
supply line: l 20 D return line: l 10 D
disturbance source: compressor
supply line: l 100 D
Tab. 5.2: Recommended distance from disturbance sources
D = nominal pipe diameter at the measuring point, l = recommended distance
