Flexim FLUXUS G608 User Manual

60 UMFLUXUS_G6V4-2EN, 2011-03-29
FLUXUS G60x 8 Mounting the Transducers
• Repeat the steps for fixing the second transducer.
• Adjust the transducer distance by loosening the knurled screw (11) of a spring clip (10)
and shifting the transducer.
1 screw 7 cylinder
2 railrail 8 ball chain
3 transducer 9 groove
4 chain tensioner 10 spring clip
5 horizontal groove 11 knurled screw
6 rail support

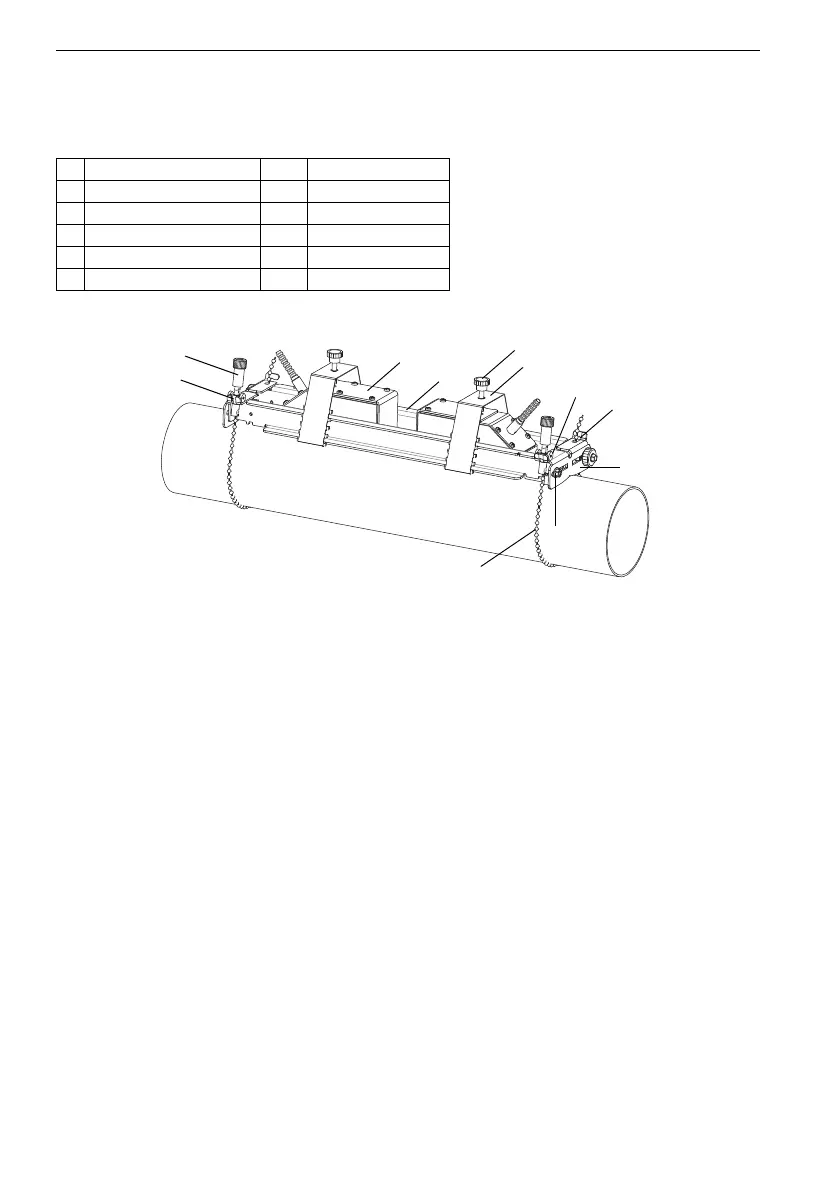

Fig. 8.7: Variofix rail with chains
1
2
3
4
5
6
7
8
9
10
11
