Processors
© cognitas. Gesellschft für Technik-Dokumentation mbH 2013 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-20568-001.fm

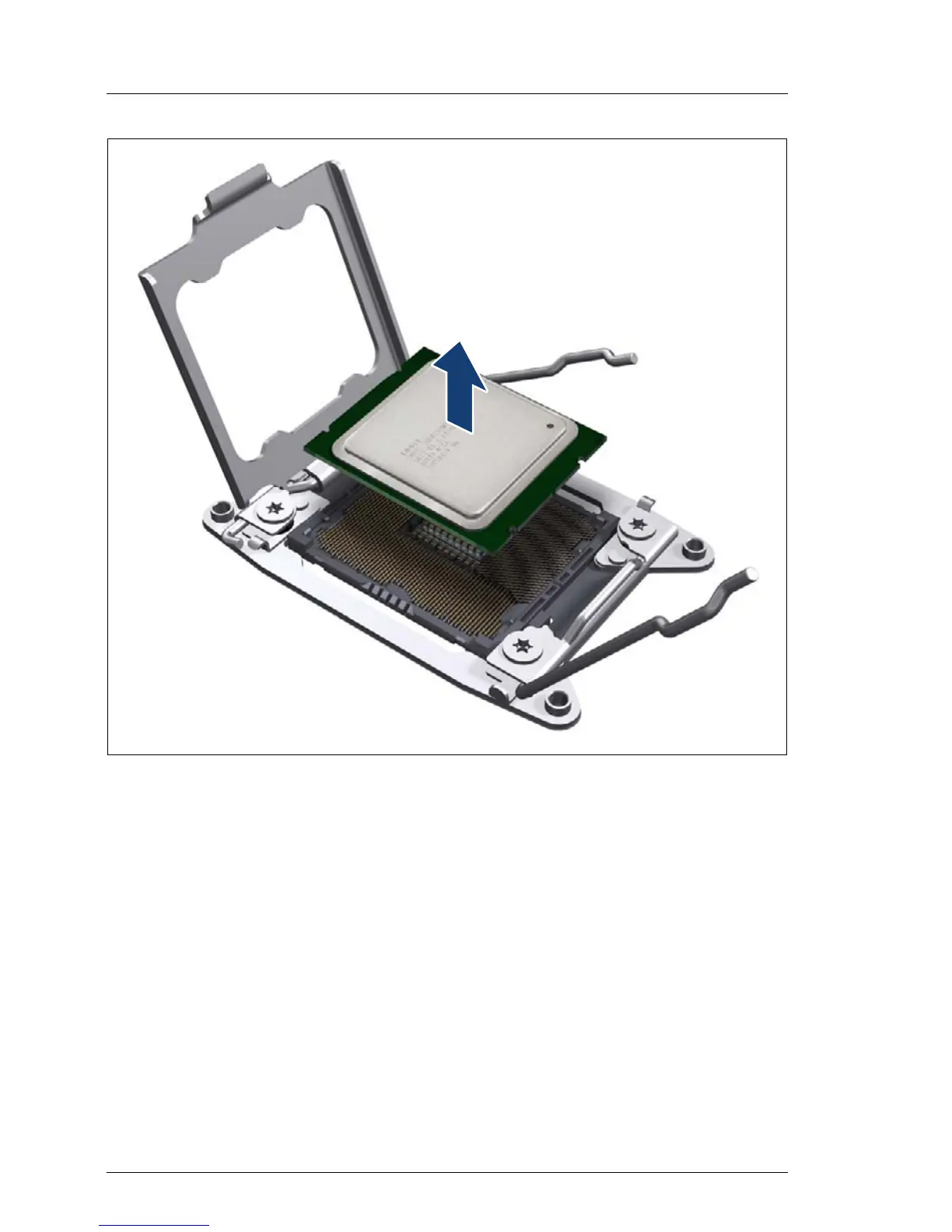

Figure 72: Removing the processor
Ê Carefully remove the defective processor from its socket in a vertical motion.
V CAUTION!
Be careful not to touch or bend the spring contacts on the processor
socket.
Ê Thoroughly clean residual thermal paste from the processor surface using a
lint-free cloth.
