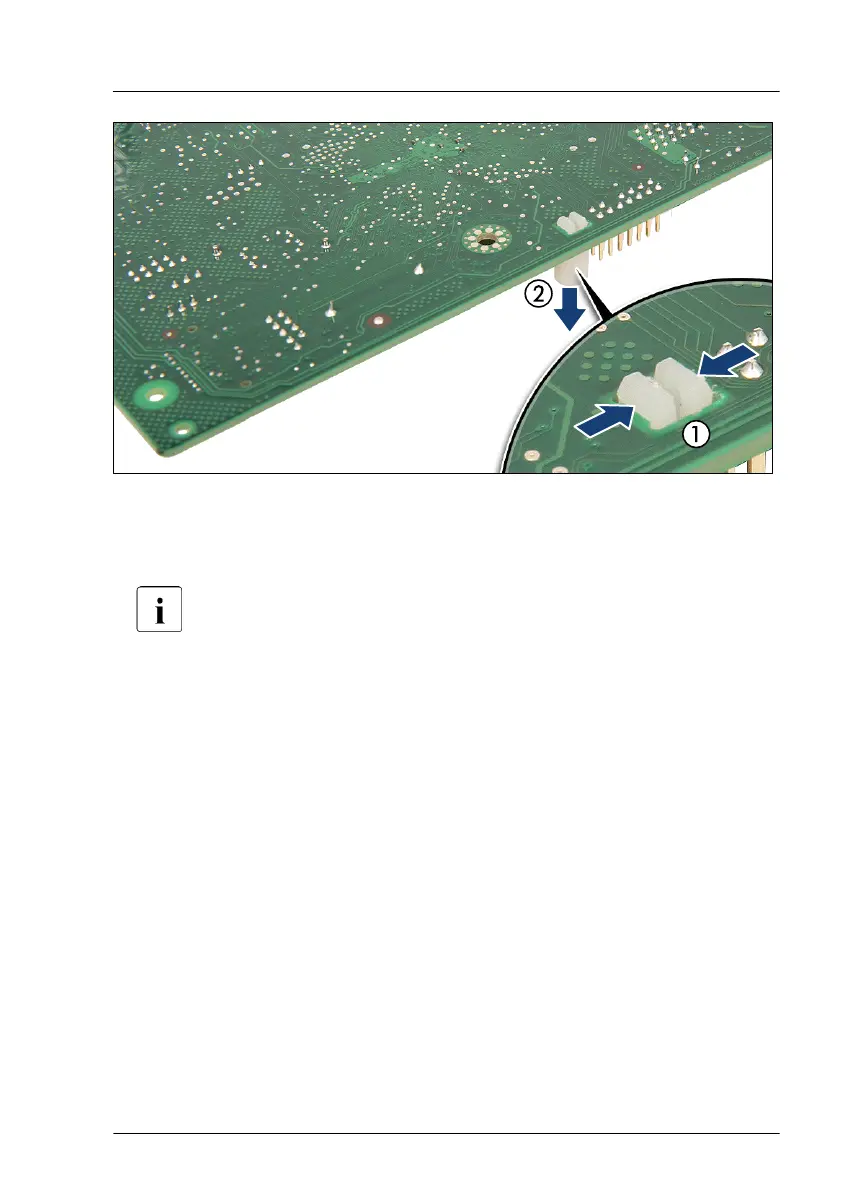

Figure 260: Removing the TPM spacer
▶
Using a flat nose pliers, press together the hooks on the TPM spacer (1, see
close-up) and remove it from the system board (2).
If the TPM is to be replaced, the TPM spacer may remain on the
system board.
Concluding steps
▶
Install all riser modules, see "Installing a riser module" on page 69.
▶
Install all fans, see "Installing the new fan module" on page 192
.
▶
Install the air duct, see "Installing the air duct" on page 74.
▶
Install the system board, see "Installing the new system board" on page 393.
▶
"Reassembling" on page 57.
▶
If applicable, install the OCP modules, see "Installing the OCP module" on
page 213.
▶
Install all PSUs, see "Installing a hot-plug PSU" on page 110.
▶
"Connecting the power cord" on page 62.
▶
"Switching on the server" on page 66.
▶
If applicable, "Installing the front cover with lock" on page 66.
System board and components
RX2530 M6 Upgrade and Maintenance Manual 357
