35

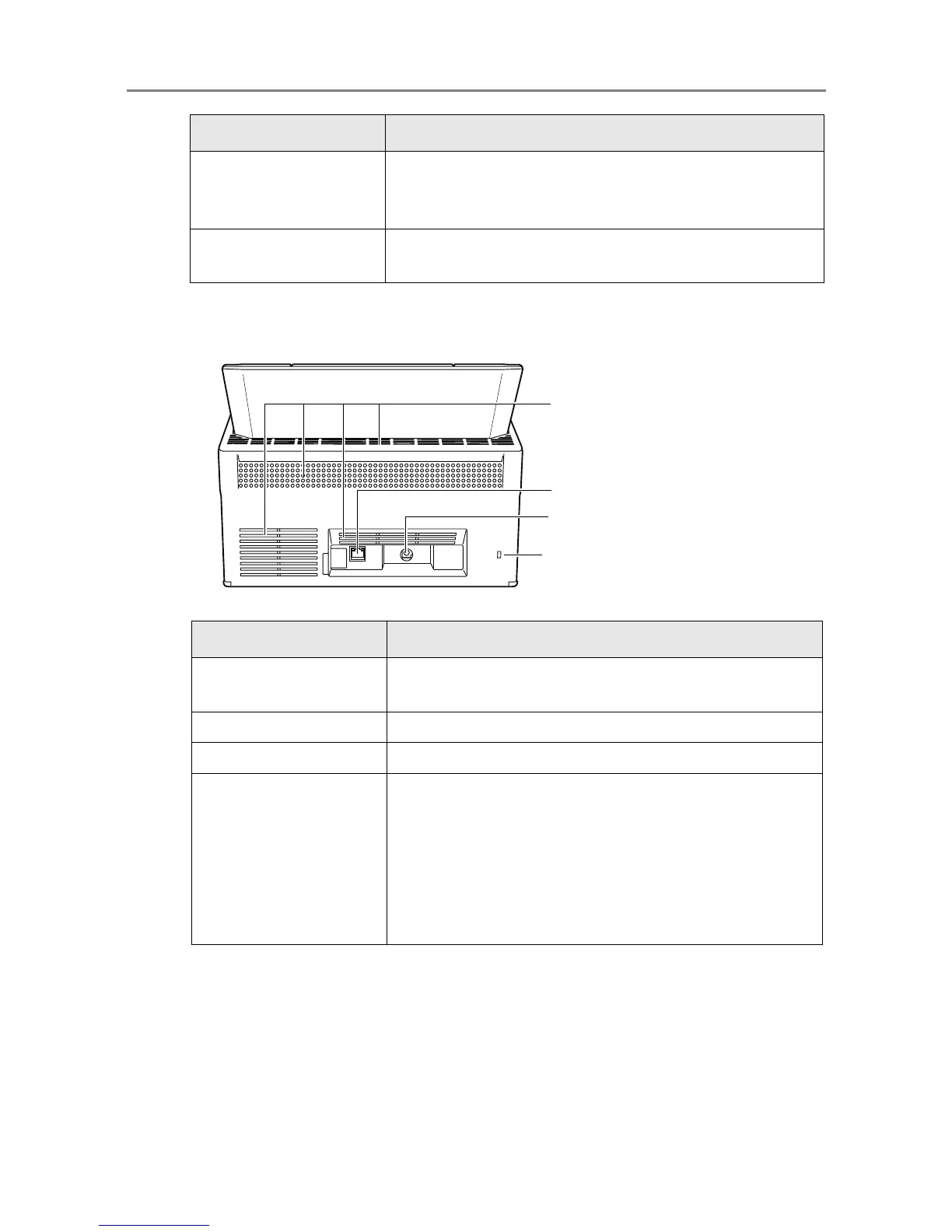

■ Rear View
Top cover Frames the LCD touch panel, and covers the upper
scanner/ADF mechanism. Must be opened to clean inside
the scanner, or when replacing consumable parts.
Stacker Open before scanning. Scanned documents are ejected
on the stacker.
Part Name Function
Ventilation ports Lets out the heated air from the inside of the scanner to
the outside.
Power connector Connects the scanner to the AC adapter.
LAN connector Connects the scanner to the network.
Security cable slot Slot for commercially available security cable to prevent
against theft.
The following security cable is recommended.
Cylindrical part: diameter 25 mm (max), length 50 mm
(max)
Type: Right angle
(includes bent part if a straight cable is used)
Part Name Function
