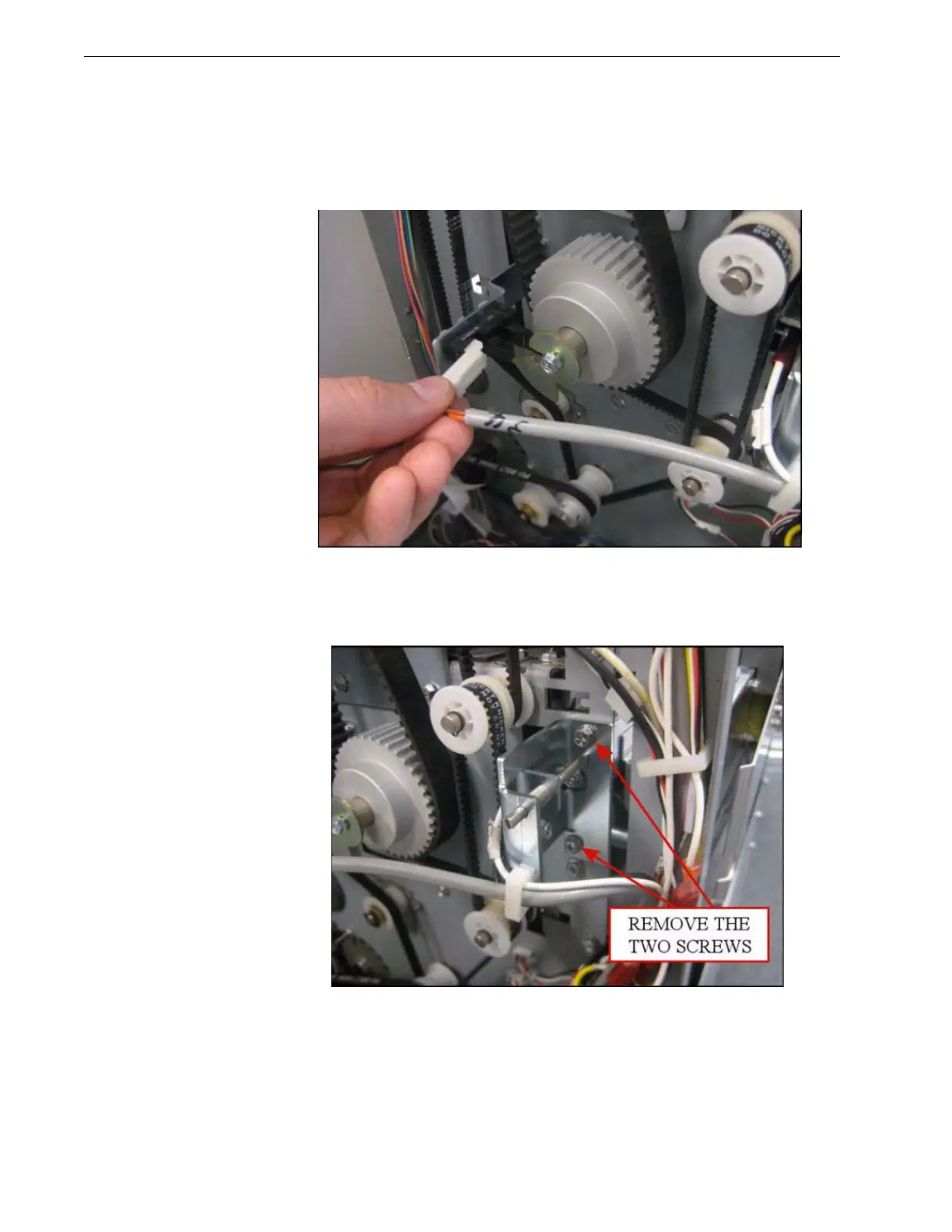

11. Remove punch module home sensor cable.
Figure 4.44 Removal of Sensor Cable
12. Remove the two screws shown below from the dieset stop bracket and then
remove the bracket from the rear frame.
Figure 4.45 Removal of Dieset Stop Bracket
