Repair and Adjustment Procedures

4.9.5 Punch Module Motor Replacement

Procedure

Replace motor when it malfunctions.

To replace the Punch Module motor:

1. Cut any wire ties as necessary to release the motor wires.

2. Unplug motor wire connections from the capacitor [1].

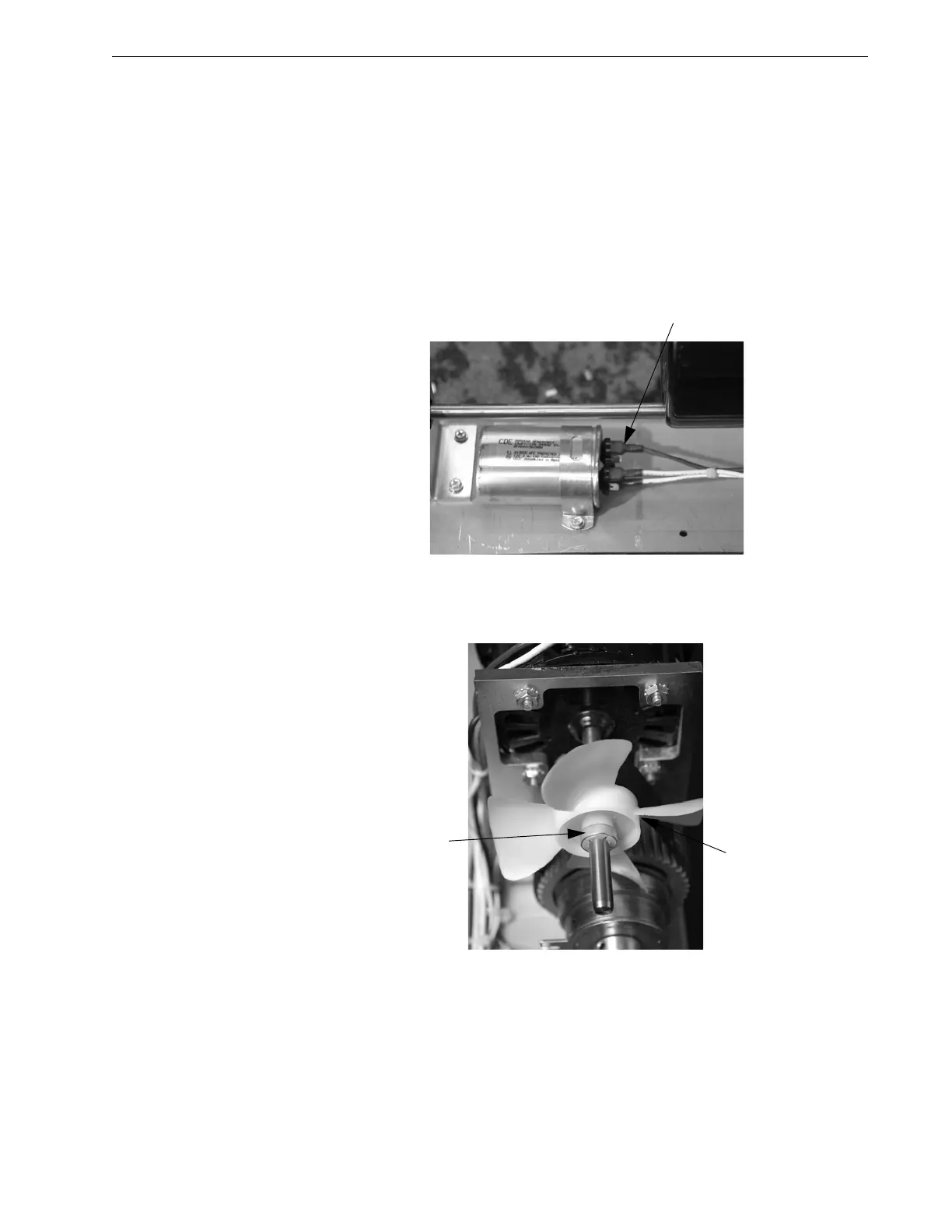

Figure 4.71 Punch Capacitor.

3. Remove the metal spring clip [1] from the fan and slide the fan [2] off the shaft.

Figure 4.72 Punch Fan and Spring Clip.

Installation Note: When installing the fan, be sure to align the flat of the fan hub

with the flat on the shaft. Also, make sure the hub and spring clip are facing away

from the motor.

[3]

[1]

[2]
